LTST-S320KRKT
LED RED CLEAR 1208 SMD R/AManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
The Lite-On Inc. LTST-S320KRKT is a discrete red LED designed for surface mount applications, specifically packaged in a 1208 footprint (2-SMD, No Lead). This component offers a dominant wavelength of 631nm and a peak wavelength of 639nm, providing a clear red light output. With a forward voltage of 2V (typical) and a test current of 20mA, it achieves a luminous intensity of 54mcd. The LED features a colorless, clear lens with a rectangular, domed top and a 130° viewing angle. Its compact dimensions of 3.00mm L x 2.00mm W and a maximum height of 1.00mm make it suitable for space-constrained designs, often found in industrial automation, consumer electronics, and medical equipment. The LTST-S320KRKT is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Red |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 54mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 639nm |
| Wavelength - Dominant | 631nm |
| Supplier Device Package | 1208 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
Request a Quote
Clients Also Buy

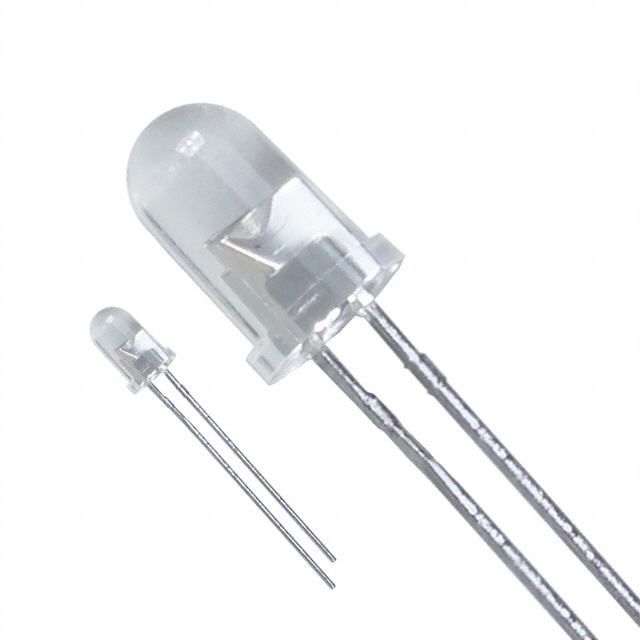

LTL-2F3VAKNT
