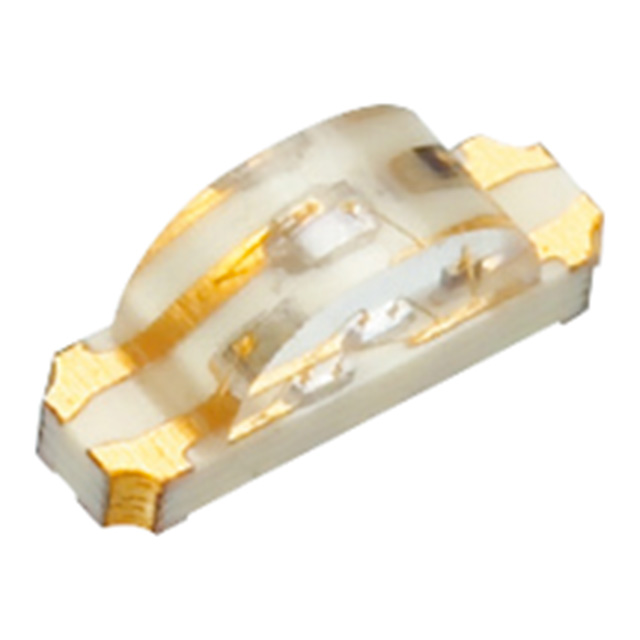

LTST-S310F2KT
LED RGB CLEAR SMD R/AManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.5V Green, 3.5V Blue 4-SMD
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 135mcd Red, 210mcd Green, 78.5mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.5V Green, 3.5V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 130° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 632nm Red, 520nm Green, 468nm Blue |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
