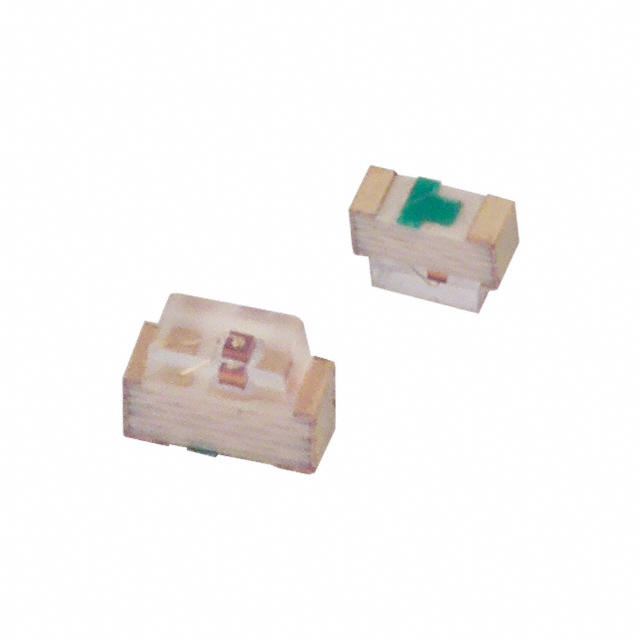

LTST-S270CKT

LED RED CLEAR SMD R/A

Manufacturer: Lite-On Inc.

Categories: LED Indication - Discrete

Quality Control: Learn More

Lite-On Inc. LTST-S270CKT is a red, clear surface mount LED with a right-angle lead configuration. This discrete indicator component operates with a typical forward voltage of 1.8V and a test current of 20mA, achieving a millicandela rating of 16mcd. The dominant wavelength is 638nm, with a peak wavelength of 660nm. The lens is colorless and rectangular with a flat top, measuring 1.20mm x 0.60mm, and offers a wide viewing angle of 130°. The component's dimensions are 1.60mm in length and 1.15mm in width. It is supplied in a 2-SMD, No Lead Exposed Pad package, presented on tape and reel. This LED is suitable for various industrial applications requiring clear visual indication.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: UnknownPackaging: Tape & Reel (TR)Datasheet:
Technical Details:
Features-
PackagingTape & Reel (TR)
Package / Case2-SMD, No Lead Exposed Pad
ColorRed
Size / Dimension1.60mm L x 1.15mm W
Mounting TypeSurface Mount, Right Angle
Millicandela Rating16mcd
ConfigurationStandard
Voltage - Forward (Vf) (Typ)1.8V
Lens ColorColorless
Current - Test20mA
Viewing Angle130°
Height (Max)0.60mm
Wavelength - Peak660nm
Wavelength - Dominant638nm
Supplier Device PackageSMD
Lens TransparencyClear
Lens StyleRectangle with Flat Top
Lens Size1.20mm x 0.60mm
