LTST-C190CKT
LED RED CLEAR CHIP SMDManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

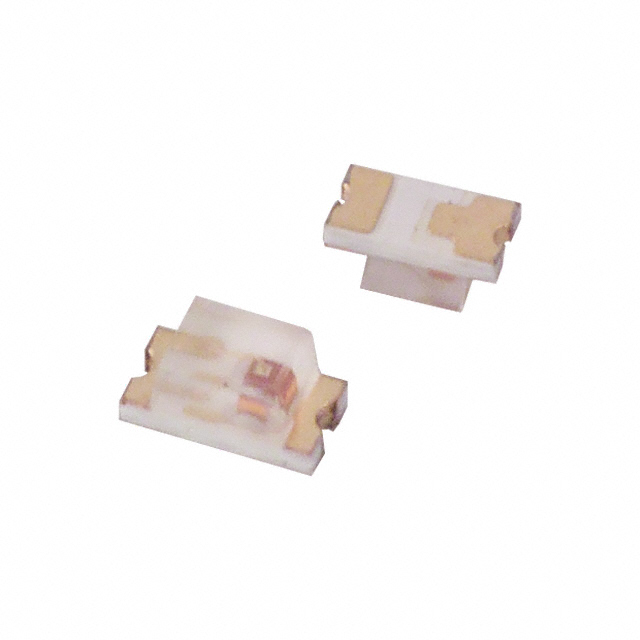

Lite-On Inc. LTST-C190CKT is a 638nm red LED designed for surface mount applications. This discrete indicator features a 0603 (1608 Metric) package with dimensions of 1.60mm L x 0.80mm W and a maximum height of 0.90mm. The clear, colorless lens has a flat-top rectangular style, measuring 1.10mm x 0.80mm, and offers a wide viewing angle of 130°. With a typical forward voltage of 1.8V and a forward current test of 10mA, this LED provides a dominant wavelength of 638nm and a peak wavelength of 660nm, achieving a millicandela rating of 10mcd. The component is supplied in Tape & Reel packaging. This LED is commonly utilized in industrial automation, consumer electronics, and medical device applications for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Red |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 10mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Colorless |
| Current - Test | 10mA |
| Viewing Angle | 130° |
| Height (Max) | 0.90mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 638nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
