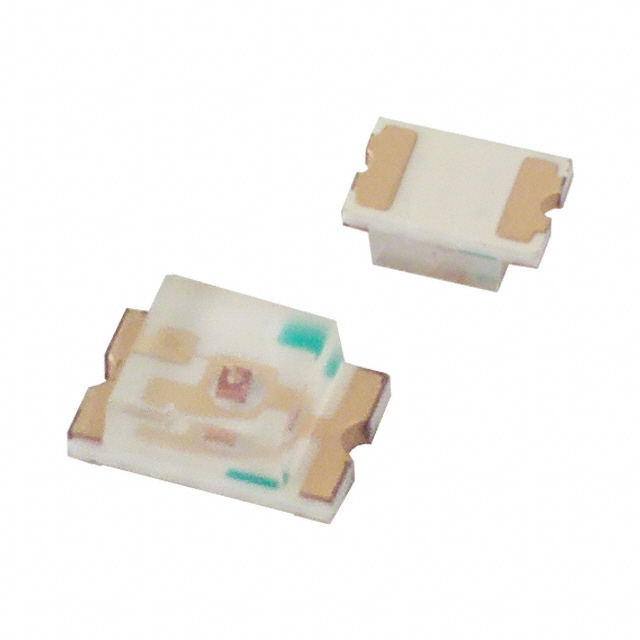

LTST-C171KEKT
LED RED CLEAR CHIP SMDManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Lite-On Inc. LTST-C171KEKT is a red, clear lens, surface-mount LED designed for discrete indication. This 0805 (2012 Metric) package component features a standard configuration with a typical forward voltage of 2V and a dominant wavelength of 624nm. It is rated for 20mA test current and provides a luminous intensity of 54mcd. The LED has a 130° viewing angle and is supplied in Tape & Reel packaging. Its compact dimensions of 2.00mm L x 1.25mm W and a maximum height of 0.90mm make it suitable for various applications including consumer electronics, industrial automation, and automotive lighting systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Red |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 54mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 0.90mm |
| Wavelength - Peak | 632nm |
| Wavelength - Dominant | 624nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
