LTST-C171CKT
LED RED CLEAR CHIP SMDManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

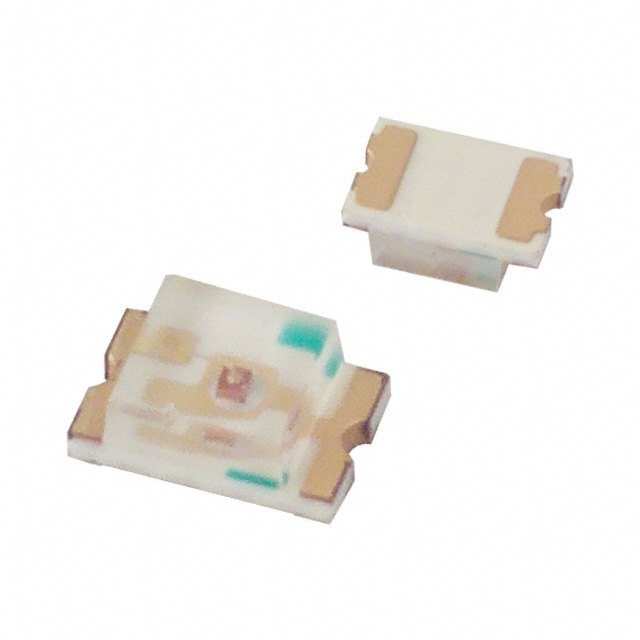

The Lite-On Inc. LTST-C171CKT is a discrete red LED designed for surface mount applications. This 0805 (2012 Metric) package component features a clear, colorless lens with a flat top rectangle style, measuring 1.40mm x 1.25mm. Emitting a dominant wavelength of 638nm (peak 660nm) with a millicandela rating of 25mcd, it operates at a typical forward voltage of 1.8V and a test current of 20mA. The viewing angle is 130°. This component is commonly utilized in industrial automation, consumer electronics, and automotive systems for various indication purposes. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Red |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 25mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 0.90mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 638nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
