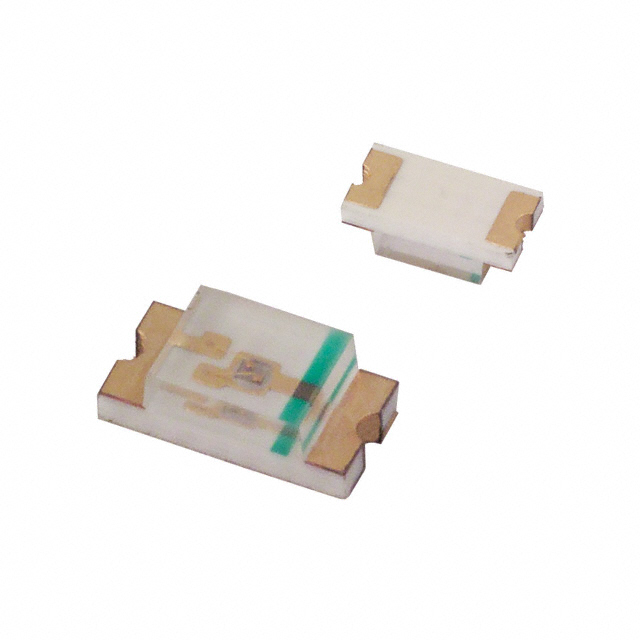

LTST-C150KYKT
LED AMBER CLEAR 1206 SMDManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
The Lite-On Inc. LTST-C150KYKT is a discrete LED component designed for surface mount applications. This amber LED emits light at a dominant wavelength of 592nm, with a peak wavelength of 595nm, providing clear visual indication. It features a standard configuration with a typical forward voltage of 2V and a forward current of 20mA for testing. The LED is housed in a 1206 (3216 Metric) package, measuring 3.20mm L x 1.60mm W, with a maximum height of 1.10mm. The lens is colorless and clear, with a rectangular shape and flat top, measuring 2.06mm x 1.60mm, and offers a wide viewing angle of 130°. This component is supplied on a tape and reel for efficient automated placement. Applications include industrial controls, consumer electronics, and automotive systems where reliable visual feedback is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Amber |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 50mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 595nm |
| Wavelength - Dominant | 592nm |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.06mm x 1.60mm |
