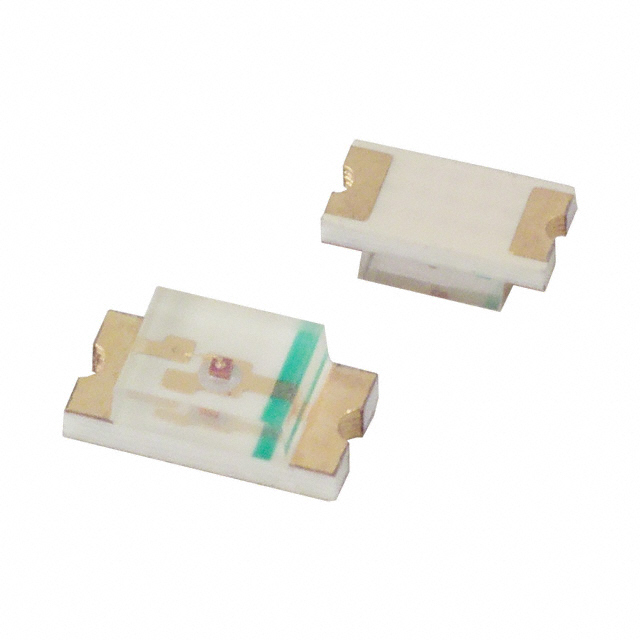

LTST-C150CKT

LED RED CLEAR 1206 SMD

Manufacturer: Lite-On Inc.

Categories: LED Indication - Discrete

Quality Control: Learn More

Lite-On Inc. LTST-C150CKT is a 1206 (3216 Metric) surface mount LED with a dominant wavelength of 638nm and a peak wavelength of 660nm. This clear, colorless lens component offers a typical forward voltage of 1.8V and a millicandela rating of 10mcd at a test current of 20mA. The LED features a rectangular lens with a flat top, measuring 2.06mm by 1.60mm, and a viewing angle of 130°. Its dimensions are 3.20mm in length and 1.60mm in width, with a maximum height of 1.10mm. This component is commonly utilized in industrial automation and consumer electronics for status indication. It is supplied in Tape & Reel packaging.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
Features-
PackagingTape & Reel (TR)
Package / Case1206 (3216 Metric)
ColorRed
Size / Dimension3.20mm L x 1.60mm W
Mounting TypeSurface Mount
Millicandela Rating10mcd
ConfigurationStandard
Voltage - Forward (Vf) (Typ)1.8V
Lens ColorColorless
Current - Test20mA
Viewing Angle130°
Height (Max)1.10mm
Wavelength - Peak660nm
Wavelength - Dominant638nm
Supplier Device Package1206
Lens TransparencyClear
Lens StyleRectangle with Flat Top
Lens Size2.06mm x 1.60mm
