LTL915SEKS
LED RED CLEAR T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

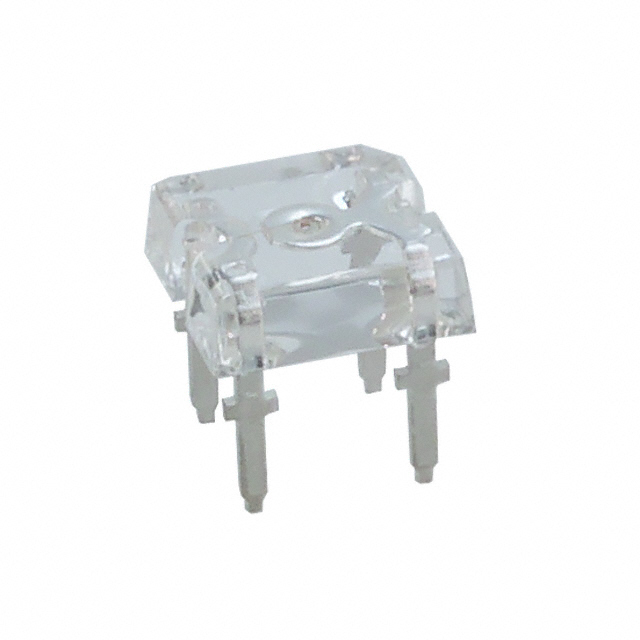

Lite-On Inc. LTL915SEKS is a red, through-hole LED indicator. This discrete component features a 628nm dominant wavelength with a peak wavelength of 638nm, emitting a luminous intensity of 0.3mcd at a typical forward voltage of 2.5V and 70mA test current. The LED is housed in a 4-DIP (0.200", 5.08mm) package with a clear, colorless lens measuring 7.62mm in diameter, featuring a square, flat-top design. Its wide 120° viewing angle makes it suitable for general indication applications across various industries including consumer electronics, industrial control systems, and automotive signaling. The component is supplied in tube packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Red |
| Size / Dimension | 7.62mm L x 7.62mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.3mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Lens Color | Colorless |
| Current - Test | 70mA |
| Viewing Angle | 120° |
| Height (Max) | 4.90mm |
| Wavelength - Peak | 638nm |
| Wavelength - Dominant | 628nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Square with Flat Top |
| Lens Size | 7.62mm |
