LTL913SEKS
LED RED CLEAR T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

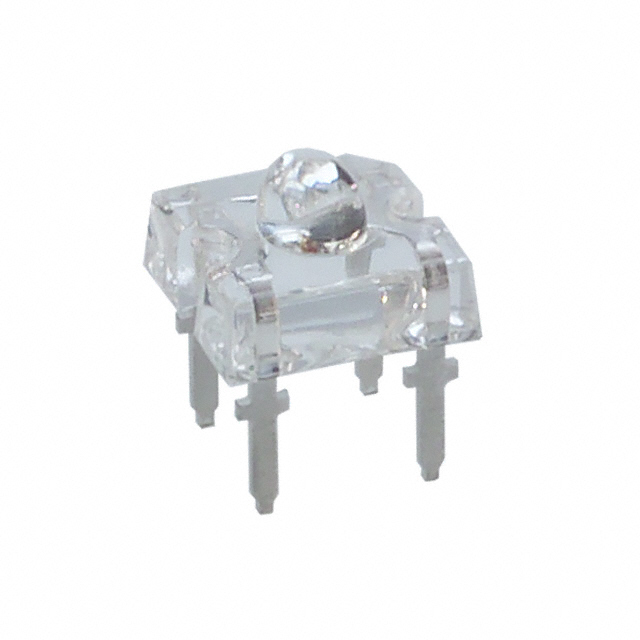

The Lite-On Inc. LTL913SEKS is a discrete, through-hole mounted red LED designed for indication applications. This component features a dominant wavelength of 628nm and a peak wavelength of 638nm, with a typical forward voltage of 2.5V and a test current of 70mA. The clear, colorless oval lens with a domed top provides a wide viewing angle of 100° and 40°. Packaged in a 4-DIP (0.200", 5.08mm) format, this component is suitable for use in various industrial and consumer electronics, including control panels and status indicators.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Color | Red |
| Size / Dimension | 7.62mm L x 7.62mm W |
| Mounting Type | Through Hole |
| Millicandela Rating | 0.8mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.5V |
| Lens Color | Colorless |
| Current - Test | 70mA |
| Viewing Angle | 100°, 40° |
| Height (Max) | 6.70mm |
| Wavelength - Peak | 638nm |
| Wavelength - Dominant | 628nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Oval with Domed Top |
| Lens Size | 4.00mm x 3.00mm |
