LTL42KE6N
LED RED CLEAR T-1 T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

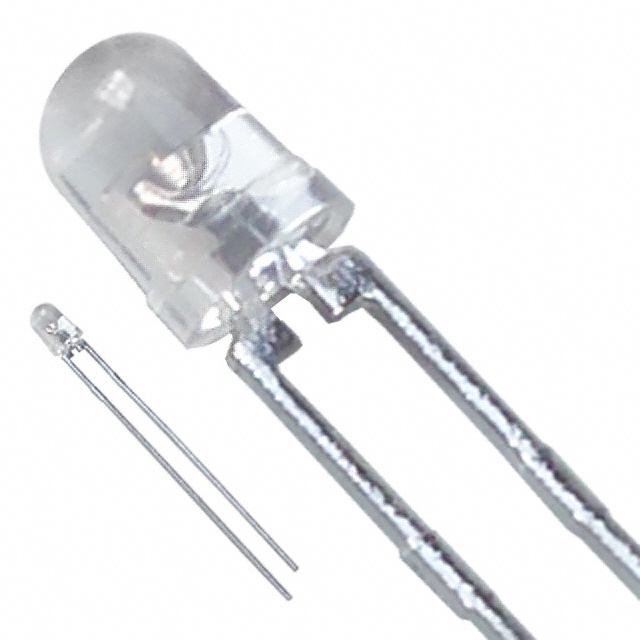

Lite-On Inc. T-1 Red Through-Hole LED, part number LTL42KE6N, offers a dominant wavelength of 624nm and a peak wavelength of 632nm. This discrete LED is designed for indication applications, featuring a clear, domed top lens with a 3mm diameter. It operates with a typical forward voltage of 2.05V and a test current of 20mA, achieving a luminous intensity of 250mcd. The radial package is suitable for through-hole mounting and is supplied in bulk packaging. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 250mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 56° |
| Height (Max) | 5.85mm |
| Wavelength - Peak | 632nm |
| Wavelength - Dominant | 624nm |
| Supplier Device Package | T-1 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
