LTL33BCWK5AT
LED COOL WHITE CLEAR T-1 3/4 T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

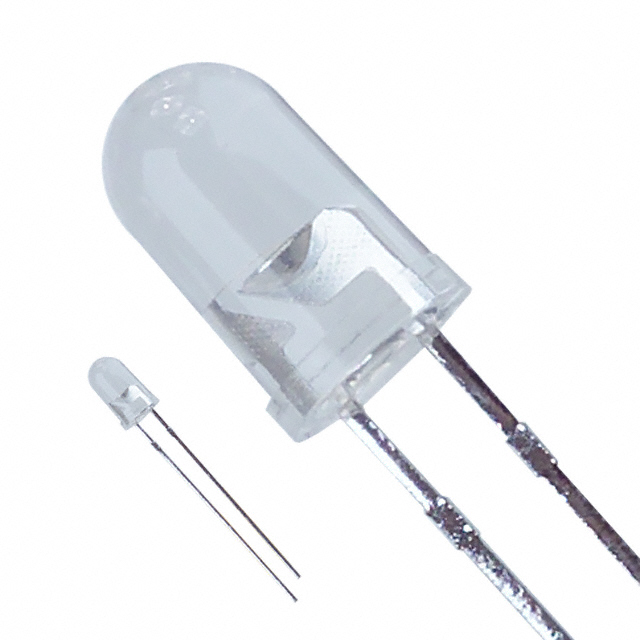

The Lite-On Inc. LTL33BCWK5AT is a discrete LED component designed for robust indication applications. This through-hole mounted device features a cool white emission with a typical forward voltage of 3.7V at 20mA. The clear, colorless T-1 3/4 lens offers a domed top and a narrow 20° viewing angle, delivering a peak luminous intensity of 4800mcd. Ideal for industrial control panels, automotive dashboards, and consumer electronics requiring reliable visual feedback, this component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White, Cool |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 4800mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.7V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 20° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
