LTL1CHKR
LED RED DIFFUSED T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

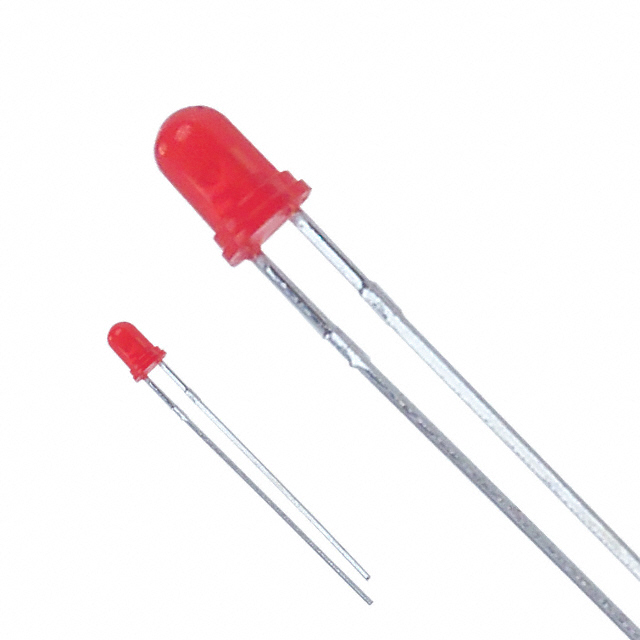

Lite-On Inc. LTL1CHKR is a red diffused, through-hole LED designed for general indication applications. This discrete component emits light at a dominant wavelength of 631nm with a peak wavelength of 639nm. It features a forward voltage of 2V (typical) and a forward current of 20mA, producing a millicandela rating of 90mcd. The LED has a round, domed top lens with a diameter of 3.10mm, providing a diffused light output and a viewing angle of 60°. The overall height of the component is a maximum of 5.20mm. This component is commonly utilized in industrial automation, consumer electronics, and automotive systems for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 90mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 5.20mm |
| Wavelength - Peak | 639nm |
| Wavelength - Dominant | 631nm |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.10mm Dia |
