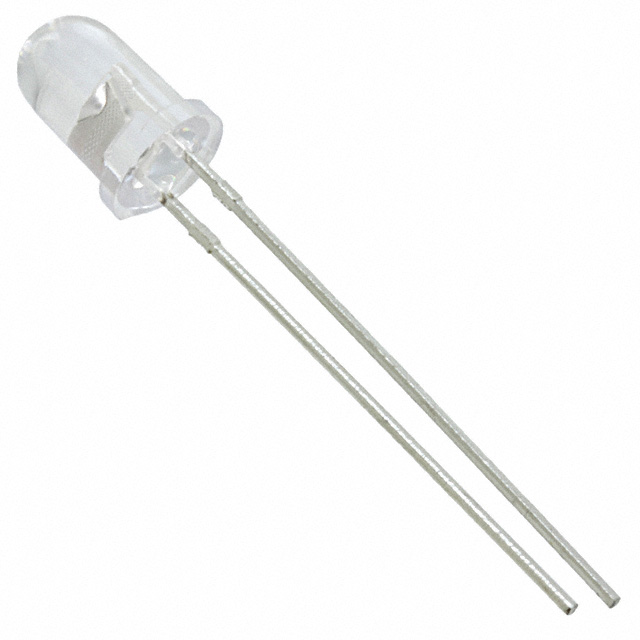

LTL-4268-H3
LED RED CLEAR T-1 3/4 T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Lite-On Inc. LTL-4268-H3 is a through-hole mounted, red LED with a peak wavelength of 660nm and a dominant wavelength of 638nm. This discrete LED features a clear, colorless, round lens with a domed top, measuring 5.00mm in diameter. The T-1 3/4 package offers a narrow viewing angle of 16 degrees, providing focused illumination. With a typical forward voltage of 1.8V and a test current of 20mA, it achieves a millicandela rating of 220mcd. This component is suitable for indication applications across various industries, including industrial automation, consumer electronics, and medical devices. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 220mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 16° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 638nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
