LTL-4263
LED RED DIFFUSED T-1 3/4 T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

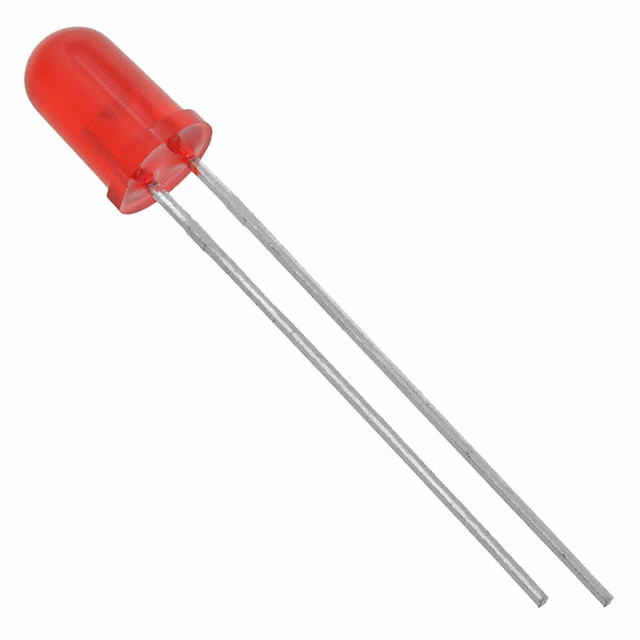

The Lite-On Inc. LTL-4263 is a red diffused T-1 3/4 through-hole LED. This discrete indicator component operates with a typical forward voltage of 1.8V and a test current of 20mA, achieving a millicandela rating of 135mcd. Its dominant wavelength is 638nm, with a peak wavelength of 660nm. Featuring a red diffused lens with a domed top, it offers a viewing angle of 36 degrees. This component is suitable for various industrial applications requiring reliable visual indication, including control panels, instrumentation, and consumer electronics. The LTL-4263 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 135mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 36° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 638nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
Request a Quote
