LTL-353TBK
LED BLUE CLEAR T-1 3/4 T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

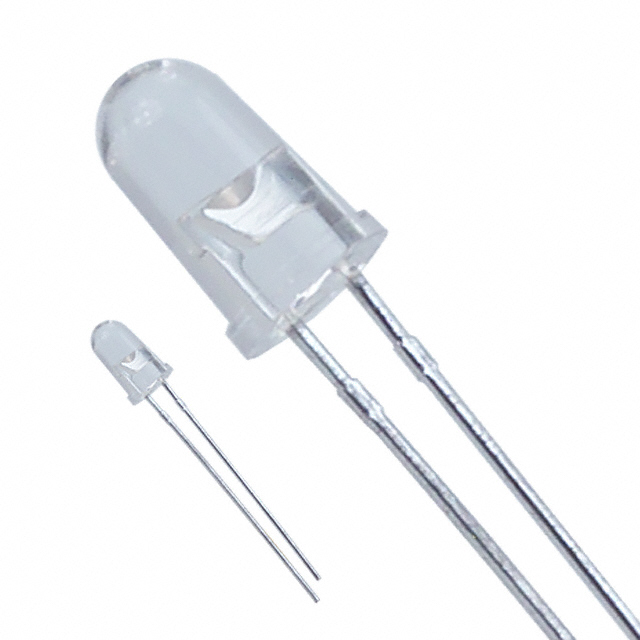

Lite-On Inc. LTL-353TBK is a through-hole, blue LED with a dominant wavelength of 470nm and a peak wavelength of 468nm. This discrete indicator features a clear, colorless lens with a domed top, measuring 5mm (T-1 3/4) in size. The component offers a typical forward voltage (Vf) of 3.5V and a forward current of 20mA, achieving a luminous intensity of 1900mcd. Its narrow viewing angle of 8° makes it suitable for precise indication applications. The LTL-353TBK is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication and signaling. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1900mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 8° |
| Height (Max) | 8.80mm |
| Wavelength - Peak | 468nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
