LTL-2R3VRKNT
LED RED CLEAR T-1 3/4 T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

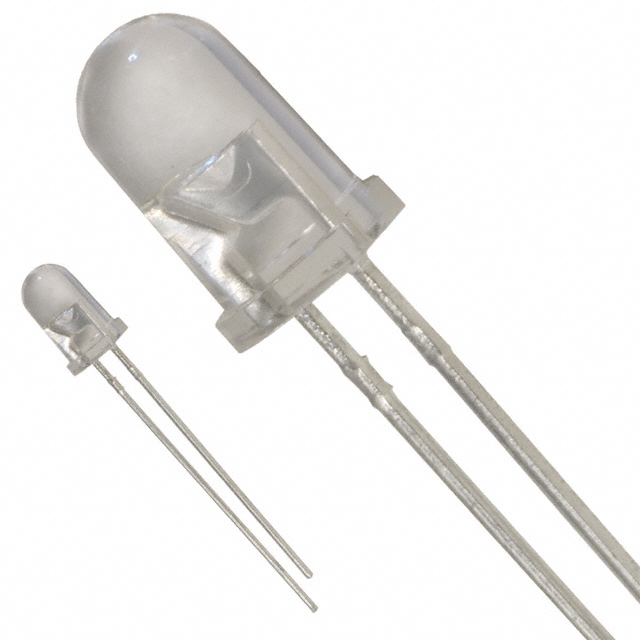

Lite-On Inc. LTL-2R3VRKNT is a discrete red LED designed for general indication. This through-hole component features a T-1 3/4 package with a clear, colorless lens and a domed top for wide light distribution. Emitting at a dominant wavelength of 631nm and a peak wavelength of 639nm, it provides a luminous intensity of 990mcd at a typical forward voltage of 1.9V and test current of 20mA. Its 30° viewing angle makes it suitable for applications in industrial control, consumer electronics, and automotive systems where reliable visual status indication is critical. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 990mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 8.70mm |
| Wavelength - Peak | 639nm |
| Wavelength - Dominant | 631nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
