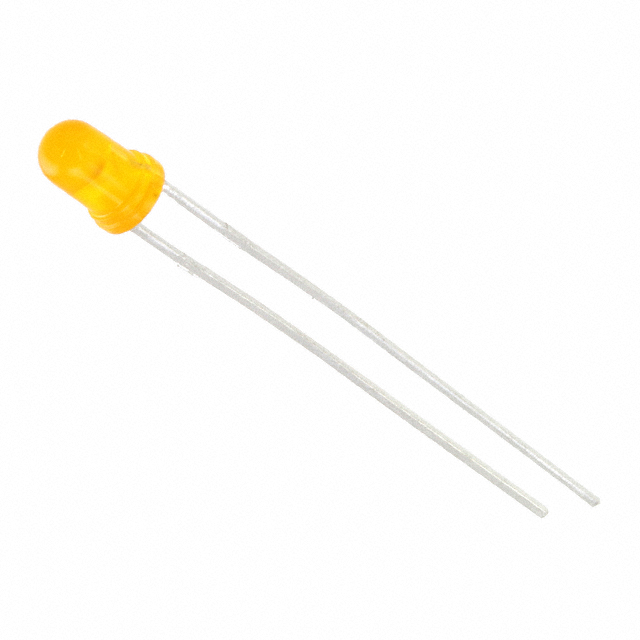

LTL-1CHA
LED AMBER DIFFUSED T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Lite-On Inc. LTL-1CHA is a through-hole mounted amber LED with a diffused lens, ideal for general indication. This discrete component features a dominant wavelength of 602nm and a peak wavelength of 610nm, emitting a clear amber hue. The forward voltage is typically 2.1V at a test current of 20mA, producing a luminous intensity of 12.6 millicandela. The round, domed lens measures 3.10mm in diameter and has a maximum height of 5.20mm. Its 60° viewing angle ensures broad visibility. This component is commonly utilized in industrial automation, consumer electronics, and automotive applications for status indication. Packaged in bulk, it is designed for efficient integration into various electronic assemblies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Amber |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 12.6mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Amber |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 5.20mm |
| Wavelength - Peak | 610nm |
| Wavelength - Dominant | 602nm |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 3.10mm Dia |
