LTP-2057AHR
DISPLAY DOT MATRIXManufacturer: Lite-On Inc.
Categories: LED Dot Matrix and Cluster
Quality Control: Learn More

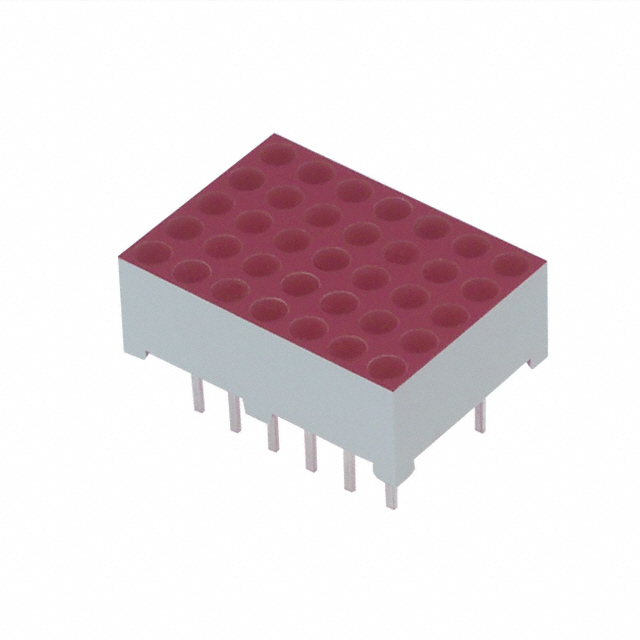

The Lite-On Inc. LTP-2057AHR is a 5x7 dot matrix display module. This component features a common cathode row and common anode column configuration, designed for clear red illumination. With a typical forward voltage of 2.6V and a luminous intensity of 4.8mcd, it is suitable for applications requiring visual alphanumeric or graphical representation. The module measures 2.09 inches in length, 1.50 inches in width, and 0.34 inches in height (53.01mm x 38.00mm x 8.61mm). This display is commonly utilized in industrial control panels, medical equipment, and point-of-sale systems where reliable visual feedback is critical. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Color | Red |
| Size / Dimension | 2.09"" L x 1.50"" W x 0.34"" H (53.01mm x 38.00mm x 8.61mm) |
| Interface | - |
| Millicandela Rating | 4.8mcd |
| Configuration | 5 x 7 |
| Voltage - Forward (Vf) (Typ) | 2.6V |
| Internal Connection | Common Cathode Row, Common Anode Column |
