LTP-1557AHR
LED MATRIX 5X7 1.2"" HI-EFF REDManufacturer: Lite-On Inc.
Categories: LED Dot Matrix and Cluster
Quality Control: Learn More

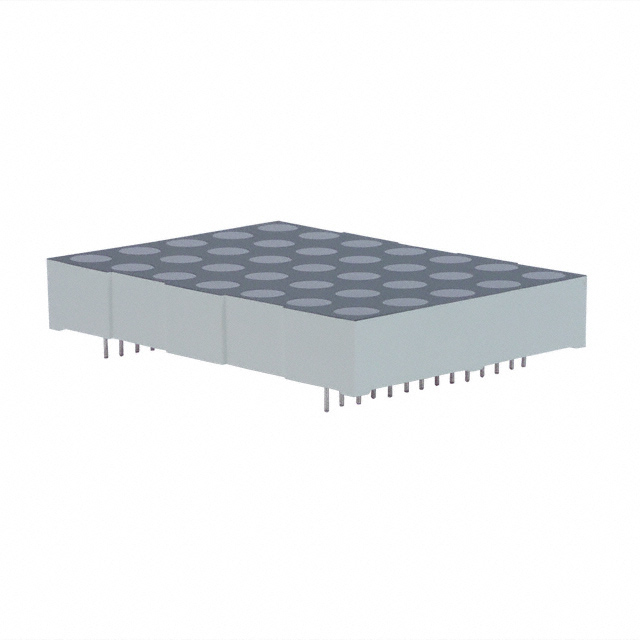

Lite-On Inc. LTP-1557AHR is a 5x7 dot matrix display module featuring high-efficiency red LEDs. This component utilizes a common anode row and common cathode column internal connection for straightforward driving. With a typical forward voltage of 2.1V and a luminous intensity of 3mcd, it is suitable for various display applications. The module measures 0.89" (22.60mm) in length, 1.25" (31.80mm) in width, and 0.32" (8.00mm) in height. This display is commonly integrated into industrial control panels, point-of-sale systems, and telecommunications equipment where clear, visible alphanumeric and graphic representations are required. The LTP-1557AHR is supplied in tube packaging.
Additional Information
Series: LTP-1557ARoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Color | Red |
| Size / Dimension | 0.89"" L x 1.25"" W x 0.32"" H (22.60mm x 31.80mm x 8.00mm) |
| Interface | - |
| Millicandela Rating | 3mcd |
| Configuration | 5 x 7 |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Internal Connection | Common Anode Row, Common Cathode Column |
