LTPL-M03622ZS50-F1
LED COB LTPL-M03 CL WHT SQ 5000KManufacturer: Lite-On Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Lite-On Inc. LTPL-M03622ZS50-F1 is a Chip On Board (COB) LED module from the LTPL-M03 series. This cool white LED features a square form factor with a 15.85mm x 15.85mm footprint and a 1.60mm profile. The Light Emitting Surface (LES) diameter is 8.90mm. It operates with a typical forward voltage of 38.3V and a maximum current of 600mA, tested at 500mA to achieve 133 lm/W. The luminous flux is 2541lm (typical) at the test conditions. The color temperature is 5000K, specified within a 5-Step MacAdam Ellipse, and offers a Color Rendering Index (CRI) of 80. This component is suitable for general lighting applications, including architectural lighting, downlights, and spotlighting. The viewing angle is 120°. It is supplied in tube packaging.
Additional Information
Series: LTPL-M03RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 15.85mm L x 15.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 38.3V |
| Height | 1.60mm |
| Current - Test | 500mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 600mA |
| Lumens/Watt @ Current - Test | 133 lm/W |
| CCT (K) | 5000K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 8.90mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 2541lm (Typ) |
Request a Quote
Clients Also Buy

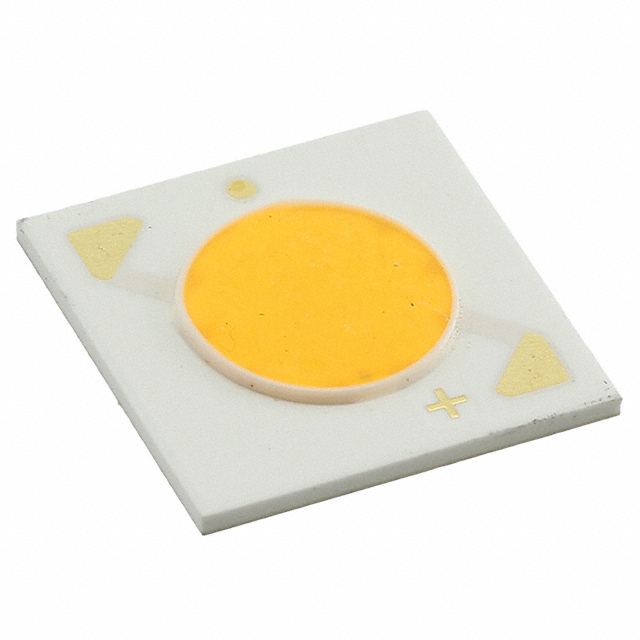

LTPL-M03618ZS30-T0
LED COB LTPL-M03 WHT SQU 3000K
LTPL-M03618ZS40-T0
LED COB LTPL-M03 WHT SQ 4000K

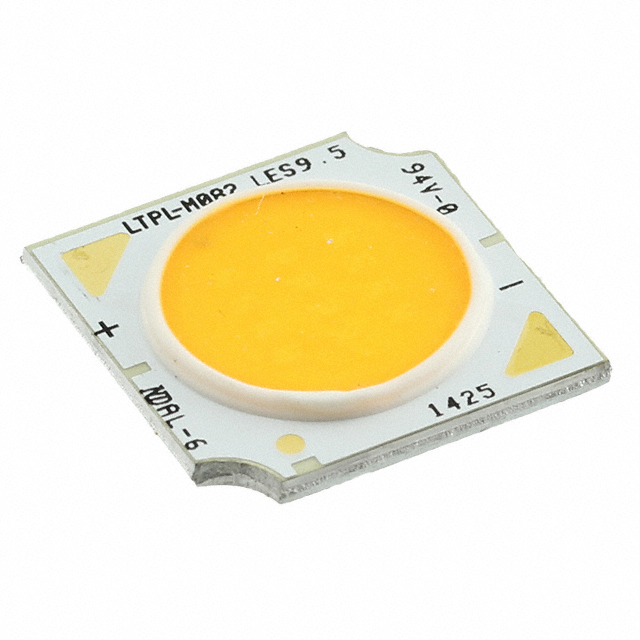

LTPL-M08208ZS30-T0
