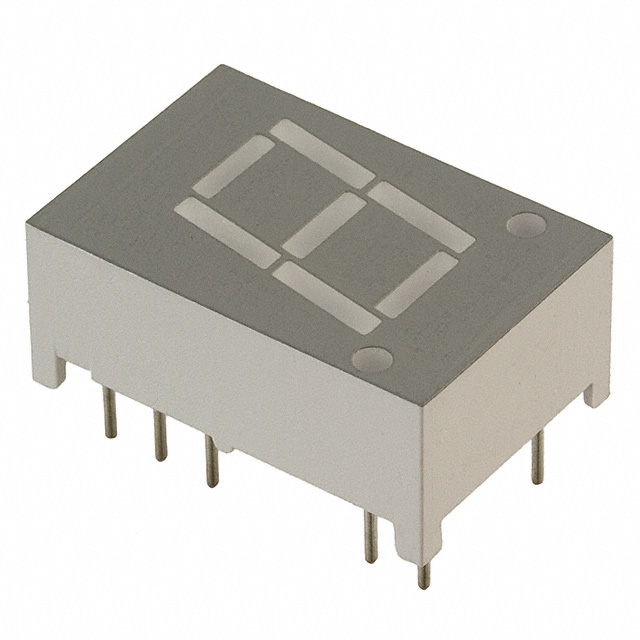

LTS-7671GN
DISPLAY 7SEG 0.44"" SGL GRN 14DIPManufacturer: Lite-On Inc.
Categories: LED Character and Numeric
Quality Control: Learn More
Lite-On Inc. LTS-7671GN is a single-digit, 0.44-inch (11.10mm) green 7-segment display module. This component features a common anode configuration with a typical forward voltage of 2.1V and a test current of 20mA, providing a millicandela rating of 2.2mcd. The device dimensions are 0.744 inches (18.90mm) in height, 0.496 inches (12.60mm) in width, and 0.310 inches (7.87mm) in depth. It is housed in a 14-DIP package with a 0.300-inch (7.62mm) pin pitch. This display is suitable for applications in industrial control, instrumentation, and consumer electronics where clear numerical or character indication is required. The peak wavelength of the emitted light is 565nm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.744"" H x 0.496"" W x 0.310"" D (18.90mm x 12.60mm x 7.87mm) |
| Number of Characters | 1 |
| Millicandela Rating | 2.2mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.44"" (11.10mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 75mW |
