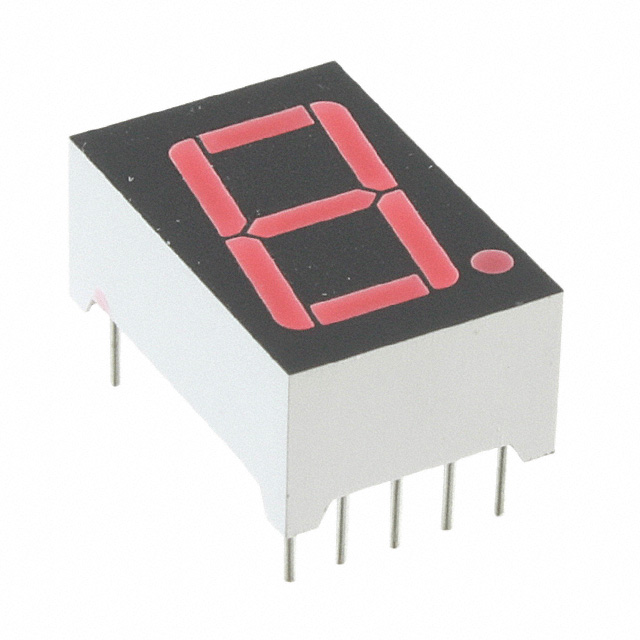

LTS-6760P
DISPLAY 7SEG 0.56"" SGL RED 10DIPManufacturer: Lite-On Inc.
Categories: LED Character and Numeric
Quality Control: Learn More
Lite-On Inc. LTS-6760P is a single-digit 7-segment display module featuring a vibrant red LED illumination. This component utilizes a common anode configuration and operates with a typical forward voltage of 2.1V at a test current of 20mA, producing a luminous intensity of 0.95mcd. The digit size measures 0.56 inches (14.22mm), with overall module dimensions of 0.750 inches H x 0.496 inches W x 0.315 inches D (19.05mm x 12.60mm x 8.00mm). Housed in a 10-DIP package with a 0.600-inch (15.24mm) lead spacing, this display is suitable for applications in industrial control, instrumentation, and various consumer electronics requiring clear numeric or alphanumeric indication. The maximum power dissipation is rated at 40mW.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.496"" W x 0.315"" D (19.05mm x 12.60mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 0.95mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 697nm |
| Power Dissipation (Max) | 40mW |
