LTS-5503AB
DISPLAY 7SEG 0.56"" SGL BLU 10DIPManufacturer: Lite-On Inc.
Categories: LED Character and Numeric
Quality Control: Learn More

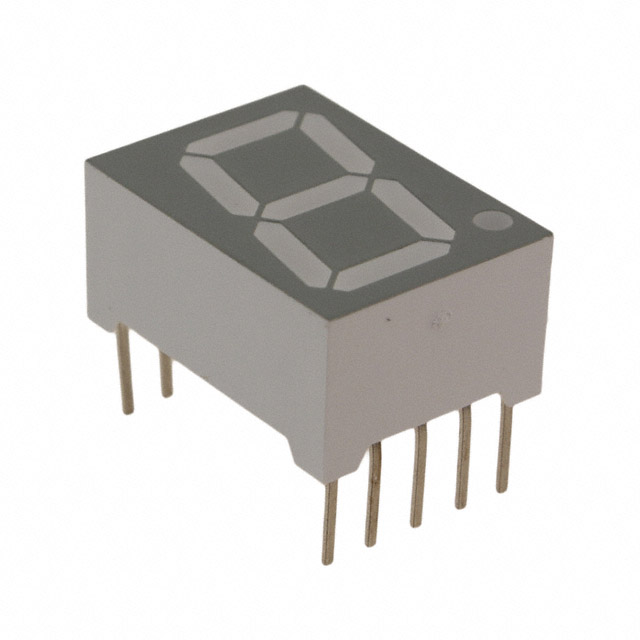

Lite-On Inc. LTS-5503AB is a single-digit, 7-segment display module featuring a vibrant blue illumination. This component utilizes a common cathode configuration and operates with a typical forward voltage of 3.8V and a test current of 20mA, resulting in a luminous intensity of 4.3mcd. The digit size is 0.56 inches (14.22mm). The module's dimensions are 0.673 inches high by 0.488 inches wide by 0.315 inches deep (17.10mm x 12.40mm x 8.00mm). It is housed in a standard 10-DIP package with a 0.600-inch (15.24mm) pin pitch. The device is supplied in tube packaging. This display is commonly found in instrumentation, industrial control systems, and general electronic equipment requiring clear numeric indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Blue |
| Display Type | 7-Segment |
| Size / Dimension | 0.673"" H x 0.488"" W x 0.315"" D (17.10mm x 12.40mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 4.3mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Current - Test | 20mA |
| Wavelength - Peak | 428nm |
| Power Dissipation (Max) | 95mW |
