LTS-4801B
DISPLAY 7SEG 0.39"" SGL BLU 10DIPManufacturer: Lite-On Inc.
Categories: LED Character and Numeric
Quality Control: Learn More

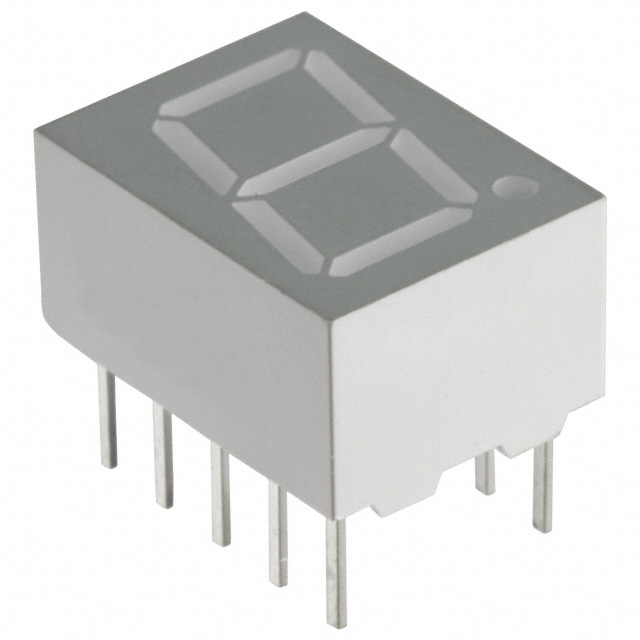

Lite-On Inc. LTS-4801B is a single-digit, 7-segment display module with a character height of 0.39 inches (10.00mm). This blue LED display features a common anode configuration and operates with a typical forward voltage of 3.8V and a test current of 20mA, yielding a millicandela rating of 3.6mcd. The component is housed in a 10-DIP package with a 0.300" (7.62mm) pin pitch. Its dimensions are 0.508" H x 0.382" W x 0.276" D (12.90mm x 9.70mm x 7.00mm). This component is suitable for applications in industrial automation, medical equipment, and consumer electronics requiring clear numerical or character indication. The LTS-4801B is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.300"", 7.62mm) |
| Color | Blue |
| Display Type | 7-Segment |
| Size / Dimension | 0.508"" H x 0.382"" W x 0.276"" D (12.90mm x 9.70mm x 7.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 3.6mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.39"" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Current - Test | 20mA |
| Wavelength - Peak | 428nm |
| Power Dissipation (Max) | 65mW |
