LTS-4710AP
DISPLAY 7-SEG 0.4"" SGL RED 14DIPManufacturer: Lite-On Inc.
Categories: LED Character and Numeric
Quality Control: Learn More

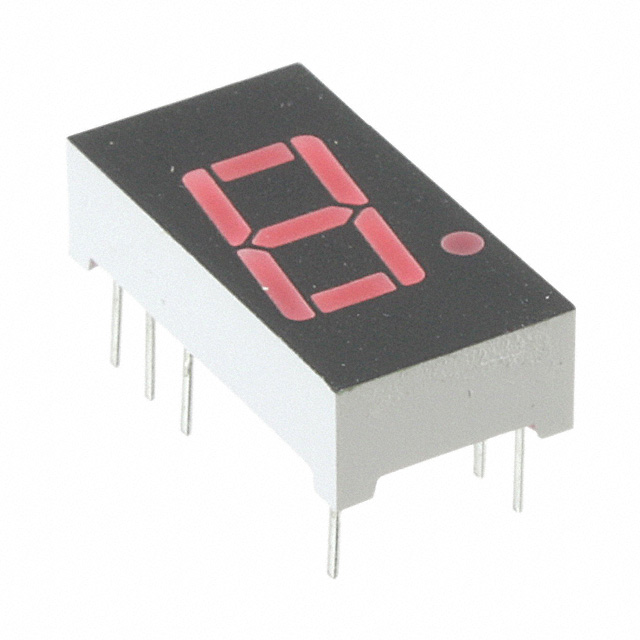

Lite-On Inc. LTS-4710AP is a single-digit, 7-segment numeric display module. This component features a 0.40-inch character height with a vibrant red LED output. It operates with a typical forward voltage of 2.1V and a test current of 20mA, delivering a luminous intensity of 0.8mcd. The LTS-4710AP utilizes a common anode configuration and is housed in a 14-DIP package with a 0.300-inch lead pitch, measuring 0.738" H x 0.386" W x 0.200" D. With a maximum power dissipation of 40mW and a peak wavelength of 697nm, this display is suitable for various applications including industrial control panels and instrumentation. The component is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.738"" H x 0.386"" W x 0.200"" D (18.75mm x 9.80mm x 5.08mm) |
| Number of Characters | 1 |
| Millicandela Rating | 0.8mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.40"" (10.16mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 697nm |
| Power Dissipation (Max) | 40mW |
