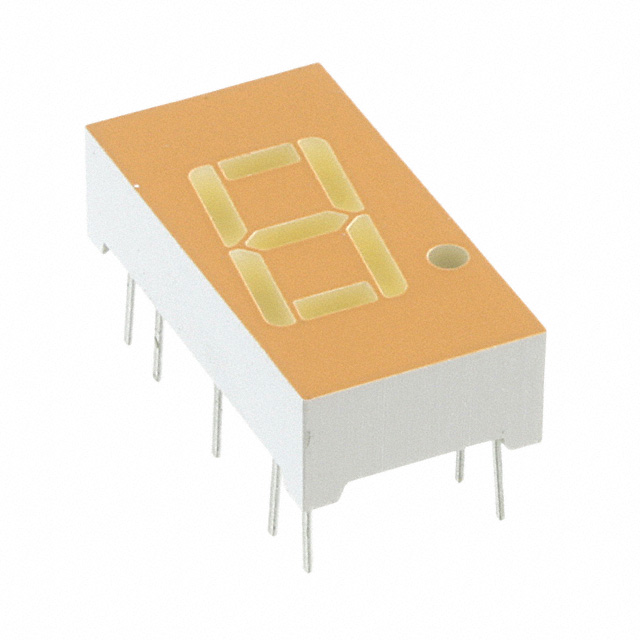

LTS-4640AE
DISP 7SEG 0.4"" SGL ORG-RED 14DIPManufacturer: Lite-On Inc.
Categories: LED Character and Numeric
Quality Control: Learn More
Lite-On Inc. LTS-4640AE is a single-digit, 7-segment numeric display featuring an orange-red LED color. This component utilizes a common cathode configuration and offers a digit size of 0.40 inches (10.16mm). The display has a typical forward voltage of 2V and a test current of 20mA, with a maximum power dissipation of 75mW. Its package is a 14-DIP with a 0.300-inch (7.62mm) lead spacing. The dimensions of the module are 0.738 inches high by 0.386 inches wide by 0.200 inches deep (18.75mm x 9.80mm x 5.08mm). Applications for this display can be found in industrial control systems, test and measurement equipment, and consumer electronics where clear numeric indication is required. The device is supplied in tube packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Color | Orange-Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.738"" H x 0.386"" W x 0.200"" D (18.75mm x 9.80mm x 5.08mm) |
| Number of Characters | 1 |
| Millicandela Rating | 2.2mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.40"" (10.16mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 630nm |
| Power Dissipation (Max) | 75mW |
