LTS-3403LP
DISPLAY 7-SEG 0.8"" SGL RED 18DIPManufacturer: Lite-On Inc.
Categories: LED Character and Numeric
Quality Control: Learn More
Lite-On Inc. LTS-3403LP is a single-digit, 0.80-inch (20.32mm) 7-segment display module featuring a red LED character. This component utilizes a common cathode configuration and operates with a typical forward voltage of 2.1V and a test current of 20mA, resulting in a millicandela rating of 0.95mcd. The display has a peak wavelength of 697nm and a maximum power dissipation of 40mW. Its package is an 18-DIP with a 0.600-inch (15.24mm) pin pitch and 13 leads. The overall dimensions are 1.090" H x 0.783" W x 0.330" D (27.69mm x 19.90mm x 8.38mm). This module is commonly found in industrial control, test and measurement equipment, and consumer electronics displays. The LTS-3403LP is supplied in tube packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.600"", 15.24mm), 13 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 1.090"" H x 0.783"" W x 0.330"" D (27.69mm x 19.90mm x 8.38mm) |
| Number of Characters | 1 |
| Millicandela Rating | 0.95mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.80"" (20.32mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 697nm |
| Power Dissipation (Max) | 40mW |
Request a Quote
Clients Also Buy
LTD-323E-FDJ
LED DISPLAY
LTS-4301P
DISPLAY 7SEG 0.39"" SGL RED 10DIP

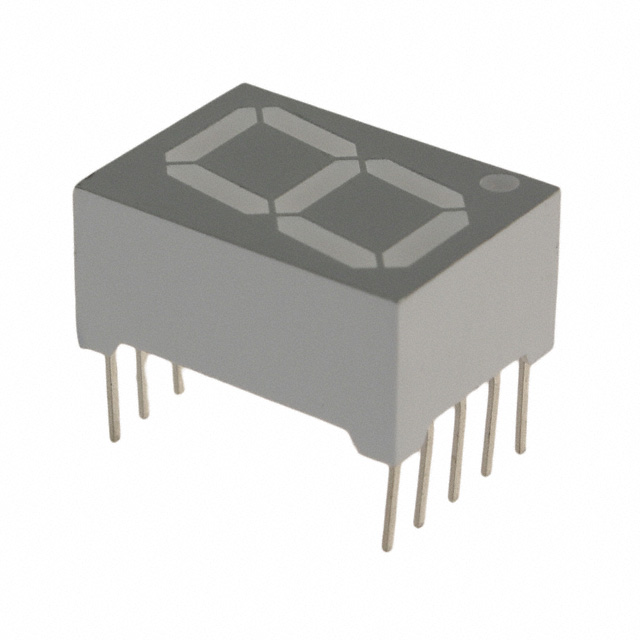

LTS-5501AB
