LTS-30301G
DISPLAY 7-SEG 3"" SGL GREEN 10DIPManufacturer: Lite-On Inc.
Categories: LED Character and Numeric
Quality Control: Learn More

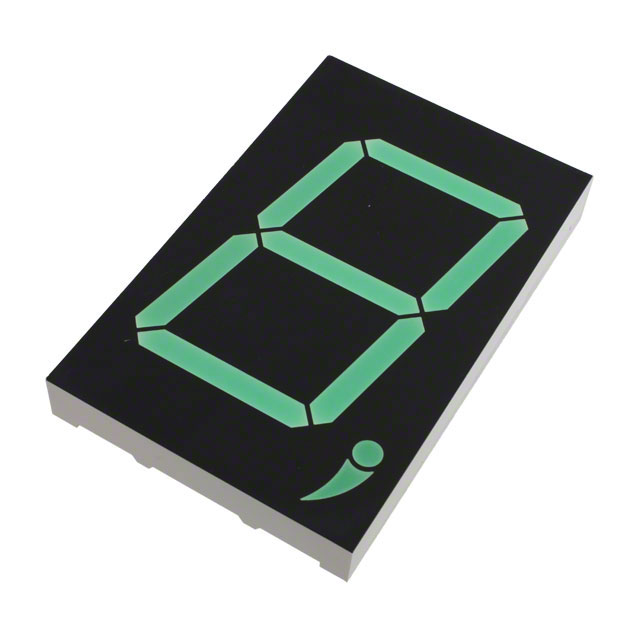

Lite-On Inc. LTS-30301G is a single-digit, 7-segment numeric display module featuring a vibrant green illumination. This component utilizes a common cathode configuration, designed for efficient operation with a typical forward voltage of 12.6V and a test current of 40mA. The large 3-inch character height ensures excellent readability, making it suitable for applications in industrial automation, medical equipment, and consumer electronics where clear visual feedback is critical. The display boasts a millicandela rating of 30mcd and a peak wavelength of 565nm, contributing to its distinct green hue. Encased in a 10-DIP package with a 3.150" (80.00mm) pitch, the module measures 4.331" H x 2.756" W x 0.512" D (110.00mm x 70.00mm x 13.00mm). The maximum power dissipation is rated at 650mW.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 10-DIP (3.150"", 80.00mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 4.331"" H x 2.756"" W x 0.512"" D (110.00mm x 70.00mm x 13.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 30mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 3.00"" (76.20mm) |
| Voltage - Forward (Vf) (Typ) | 12.6V |
| Current - Test | 40mA |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 650mW |
