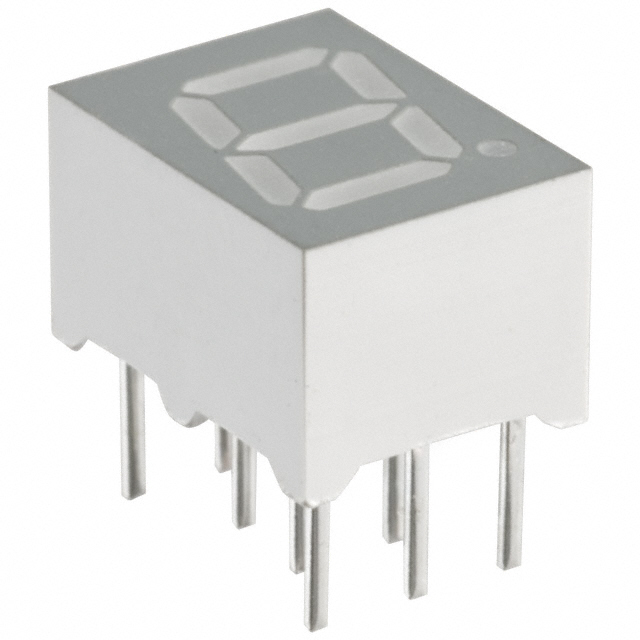

LTS-2301AB
DISPLAY 7SEG 0.28"" SGL BLU 10DIPManufacturer: Lite-On Inc.
Categories: LED Character and Numeric
Quality Control: Learn More
The Lite-On Inc. LTS-2301AB is a single-digit, 7-segment LED display module featuring a vibrant blue illumination. This component utilizes a common cathode configuration and offers a digit or alpha size of 0.28 inches (7.00mm). It operates with a typical forward voltage of 3.8V and a test current of 20mA, dissipating a maximum of 65mW. The display's dimensions are 10.00mm in height, 7.40mm in width, and 6.10mm in depth. Encased in a 10-DIP package with a 0.300-inch lead pitch, the LTS-2301AB is commonly found in industrial control systems, instrumentation, and consumer electronics where clear numeric or character indication is required. The peak wavelength for this blue LED is 428nm, with a millicandela rating of 3mcd. It is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.300"", 7.62mm) |
| Color | Blue |
| Display Type | 7-Segment |
| Size / Dimension | 0.394"" H x 0.291"" W x 0.240"" D (10.00mm x 7.40mm x 6.10mm) |
| Number of Characters | 1 |
| Millicandela Rating | 3mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.28"" (7.00mm) |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Current - Test | 20mA |
| Wavelength - Peak | 428nm |
| Power Dissipation (Max) | 65mW |
