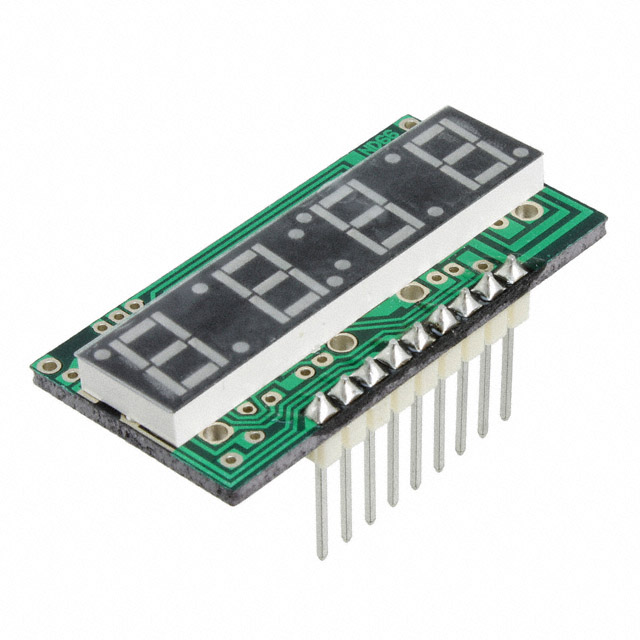

LTM-8328PKR-04
DISPLAY 7-SEG 0.3"" QUAD RED 9SIPManufacturer: Lite-On Inc.
Categories: LED Character and Numeric
Quality Control: Learn More
The Lite-On Inc. LTM-8328PKR-04 is a 4-digit, 0.30-inch (7.62mm) red 7-segment display module. This component features serial input for common cathode configuration and operates with a typical current of 0.4mA. Its peak wavelength is 697nm, with a millicandela rating of 0.16mcd. The module's dimensions are 0.803 inches high by 1.591 inches wide by 0.201 inches deep (20.40mm x 40.40mm x 5.10mm). Packaged in a 9-SIP configuration, this display is suitable for applications in industrial control, instrumentation, and point-of-sale systems where clear numerical indication is critical. Power dissipation is rated at a maximum of 335mW.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 9-SIP |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.803"" H x 1.591"" W x 0.201"" D (20.40mm x 40.40mm x 5.10mm) |
| Number of Characters | 4 |
| Millicandela Rating | 0.16mcd |
| Common Pin | Serial Input |
| Digit/Alpha Size | 0.30"" (7.62mm) |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Test | 0.4mA |
| Wavelength - Peak | 697nm |
| Power Dissipation (Max) | 335mW |
