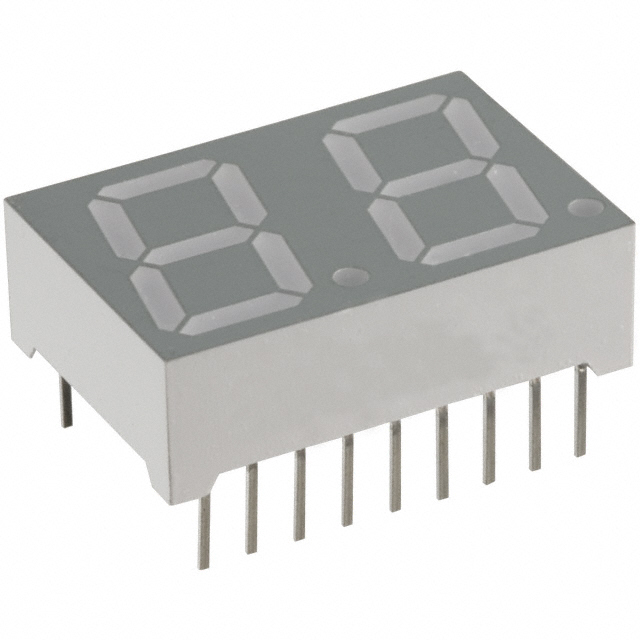

LTD-5521AB
DISPLAY 7SEG 0.56"" DBL BLU 18DIPManufacturer: Lite-On Inc.
Categories: LED Character and Numeric
Quality Control: Learn More
Lite-On Inc. LTD-5521AB is a dual-digit, 0.56-inch 7-segment display module featuring a blue LED character. This component utilizes a common anode configuration and operates with a typical forward voltage of 3.8V and a test current of 20mA, resulting in a millicandela rating of 4.3mcd. The display's dimensions are 0.673 inches (17.10mm) in height, 0.984 inches (25.00mm) in width, and 0.315 inches (8.00mm) in depth. It is housed in an 18-DIP package with a 0.600-inch (15.24mm) pin pitch. The peak wavelength for the blue emission is 428nm, and the maximum power dissipation is 95mW. This display module is commonly employed in industrial control panels, instrumentation, and point-of-sale systems. The LTD-5521AB is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Blue |
| Display Type | 7-Segment |
| Size / Dimension | 0.673"" H x 0.984"" W x 0.315"" D (17.10mm x 25.00mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 4.3mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Current - Test | 20mA |
| Wavelength - Peak | 428nm |
| Power Dissipation (Max) | 95mW |
