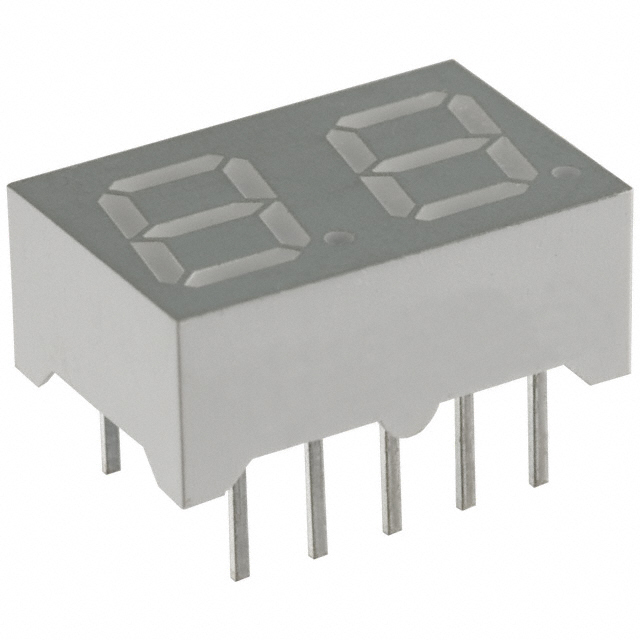

LTD-2601B
DISPLAY 7SEG 0.28"" DBL BLU 10DIPManufacturer: Lite-On Inc.
Categories: LED Character and Numeric
Quality Control: Learn More
Lite-On Inc. LTD-2601B is a 7-segment, 2-character numeric display module. This component features a common anode configuration and emits a blue light with a peak wavelength of 428nm. Each digit has a size of 0.28 inches (7.00mm) and a typical forward voltage of 3.8V at 20mA test current. The display provides a luminous intensity of 3mcd. The module is housed in a 10-DIP package with a 0.300" (7.62mm) lead spacing, measuring 0.394" H x 0.591" W x 0.240" D (10.00mm x 15.02mm x 6.10mm). The maximum power dissipation is 65mW. This display is suitable for applications in industrial control, instrumentation, and point-of-sale systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.300"", 7.62mm) |
| Color | Blue |
| Display Type | 7-Segment |
| Size / Dimension | 0.394"" H x 0.591"" W x 0.240"" D (10.00mm x 15.02mm x 6.10mm) |
| Number of Characters | 2 |
| Millicandela Rating | 3mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.28"" (7.00mm) |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Current - Test | 20mA |
| Wavelength - Peak | 428nm |
| Power Dissipation (Max) | 65mW |
