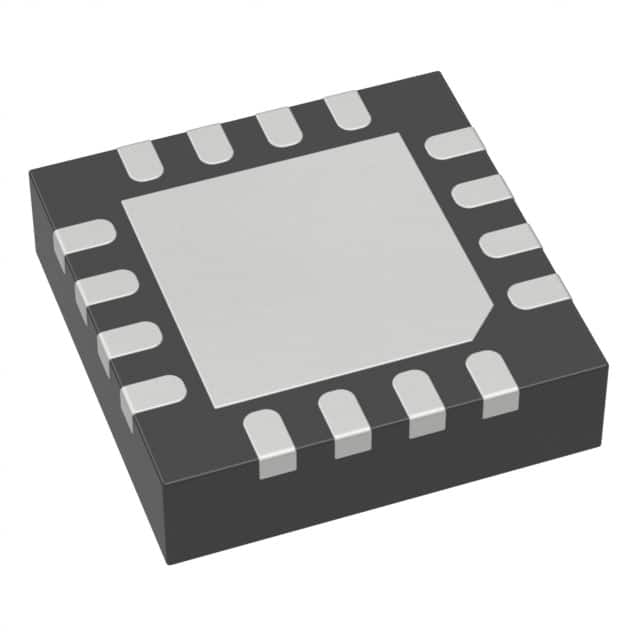

LT3517HUF#TRPBF
IC LED DRVR RGLTR PWM 1.5A 16QFNManufacturer: Linear Technology
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 1.5A (Switch) 16-QFN (4x4)
Additional Information
Series: True Color PWM™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-WQFN Exposed Pad |
| Voltage - Output | 2V ~ 45V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 250kHz ~ 2.5MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Applications | Backlight, Lighting |
| Current - Output / Channel | 1.5A (Switch) |
| Internal Switch(s) | Yes |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | 16-QFN (4x4) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 30V |
| Grade | Automotive |
