LTC3809EMSE-1#PBF
LTC3809-1 - NO RSENSE, LOW EMI DManufacturer: Linear Technology
Categories: DC DC Switching Controllers
Quality Control: Learn More

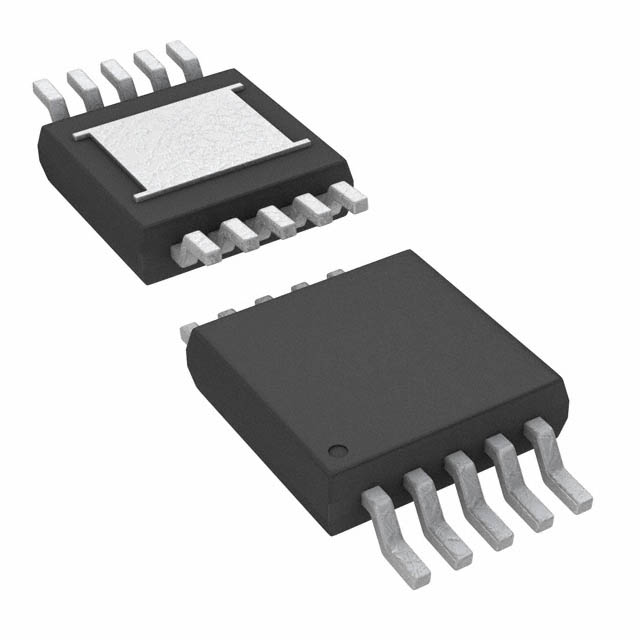

Buck Regulator Positive Output Step-Down DC-DC Controller IC 10-MSOP-EP
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Frequency - Switching | 550kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 2.75V ~ 9.8V |
| Supplier Device Package | 10-MSOP-EP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Dead Time Control, Enable, Frequency Control, Soft Start, Tracking |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | No |
| Number of Outputs | 1 |
Request a Quote
