LTC2155IUP-14#PBF
LTC2155 - 14-BIT, 170MSPS, 1.8VManufacturer: Linear Technology
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
14 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-QFN (9x9)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Bulk |

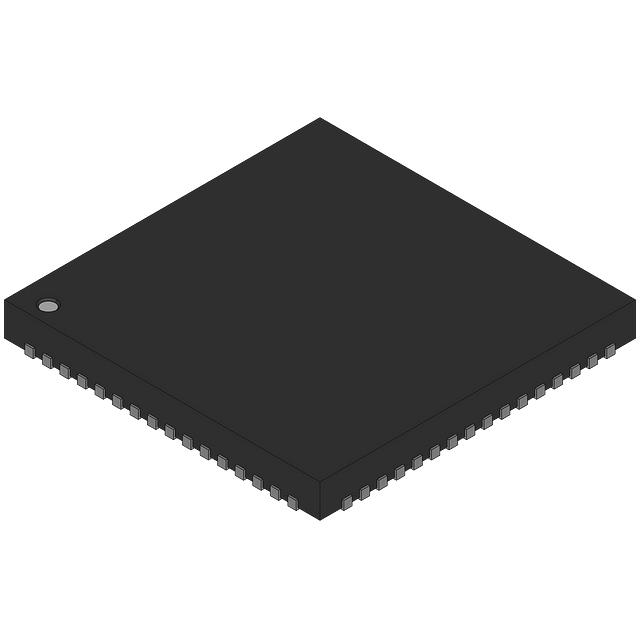

| Package / Case | 64-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 170M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 64-QFN (9x9) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 2 |
