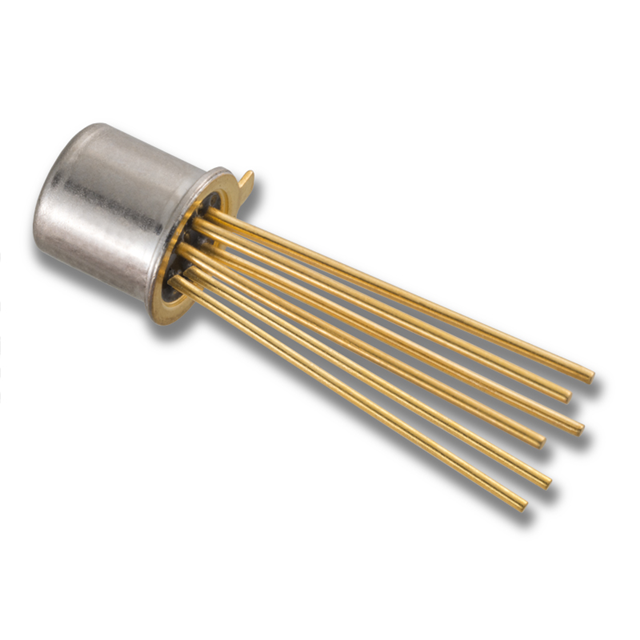

U406 TO-71 6L
JFET 2N-CH 50V TO71Manufacturer: Linear Integrated Systems, Inc.
Categories: JFETs
Quality Control: Learn More
JFET 2 N-Channel (Dual) 50 V 300 mW Through Hole TO-71
Additional Information
Series: U406RoHS Status: ROHS3 CompliantManufacturer Lead Time: 1 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-71-6 Metal Can |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| FET Type | 2 N-Channel (Dual) |
| Input Capacitance (Ciss) (Max) @ Vds | 8pF @ 15V |
| Voltage - Breakdown (V(BR)GSS) | 50 V |
| Supplier Device Package | TO-71 |
| Drain to Source Voltage (Vdss) | 50 V |
| Power - Max | 300 mW |
| Voltage - Cutoff (VGS off) @ Id | 500 mV @ 1 nA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 500 µA @ 10 V |
