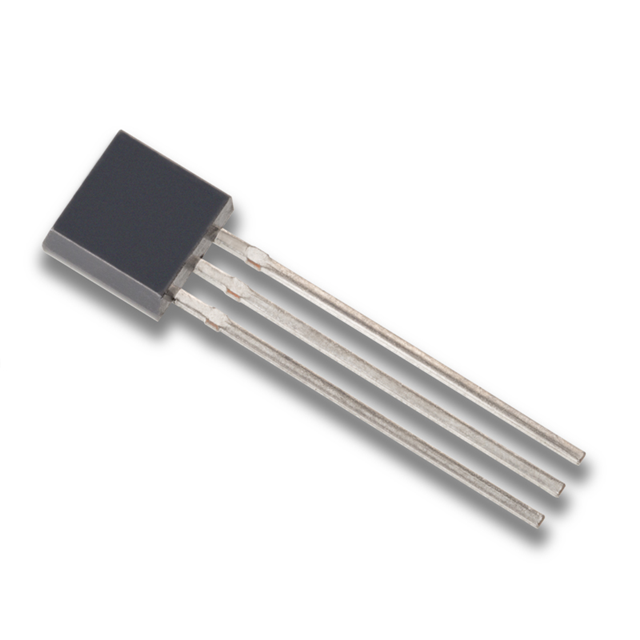

PN4118 TO-92 3L ROHS
JFET N-CH 40V 50MA TO92Manufacturer: Linear Integrated Systems, Inc.
Categories: JFETs
Quality Control: Learn More
Linear Integrated Systems, Inc. PN4118 is an N-Channel JFET with a drain-to-source voltage (Vdss) of 40V and a maximum drain current (Id) of 50mA. This device features a breakdown voltage (V(BR)GSS) of 40V and a gate-source cutoff voltage (VGS off) of 1V at 1nA. The input capacitance (Ciss) is specified at a maximum of 3pF at 10V. With a maximum power dissipation of 300mW, this JFET is available in a TO-92 package, suitable for through-hole mounting. The PN4118 series is commonly found in applications requiring low noise amplification and analog switching, including test and measurement equipment and audio preamplifiers. The device is supplied in bulk packaging.
Additional Information
Series: PN4118RoHS Status: ROHS3 CompliantManufacturer Lead Time: 1 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 3pF @ 10V |
| Voltage - Breakdown (V(BR)GSS) | 40 V |
| Current Drain (Id) - Max | 50 mA |
| Supplier Device Package | TO-92 |
| Drain to Source Voltage (Vdss) | 40 V |
| Power - Max | 300 mW |
| Voltage - Cutoff (VGS off) @ Id | 1 V @ 1 nA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 80 µA @ 10 V |
