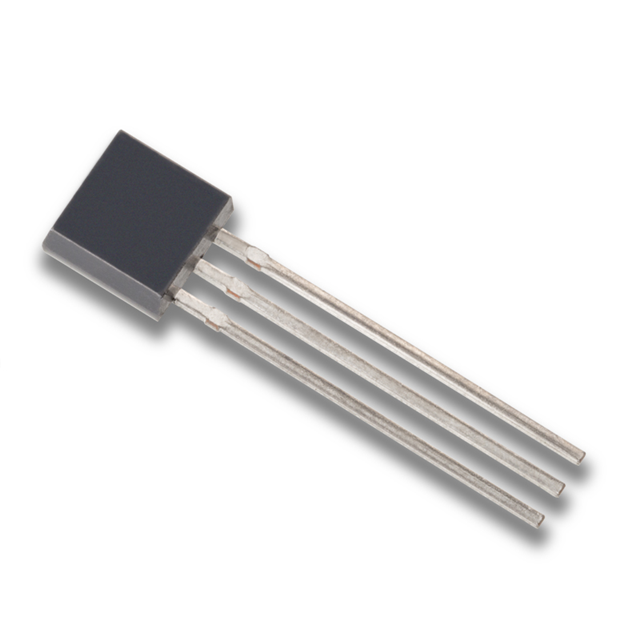

PF5301 TO-92 3L ROHS
JFET N-CH 30V TO92Manufacturer: Linear Integrated Systems, Inc.
Categories: JFETs
Quality Control: Learn More
Linear Integrated Systems, Inc. PF5301-TO-92-3L-ROHS is an N-Channel JFET designed for applications requiring low noise and high input impedance. This component features a low drain current (Idss) of 30 µA @ 10 V and a breakdown voltage (V(BR)GSS) of 30 V. The input capacitance (Ciss) is a maximum of 3 pF @ 10V. With a maximum power dissipation of 300 mW and a cutoff voltage (VGS off) of 3 V @ 1 nA, it is suitable for use in sensitive analog circuits. The device is housed in a TO-92 package and supports through-hole mounting. Operating temperature ranges from -55°C to 135°C (TJ). This JFET is commonly utilized in audio amplification, low-frequency signal processing, and general-purpose switching applications across various electronic industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 1 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 135°C (TJ) |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 3pF @ 10V |
| Voltage - Breakdown (V(BR)GSS) | 30 V |
| Supplier Device Package | TO-92 |
| Power - Max | 300 mW |
| Voltage - Cutoff (VGS off) @ Id | 3 V @ 1 nA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 30 µA @ 10 V |
Request a Quote
Clients Also Buy
LSK489A TO-71 6L ROHS
JFET 2N-CH 60V TO71-6
175 DFN 8L ROHS
JFET P-CH 30V 8DFN

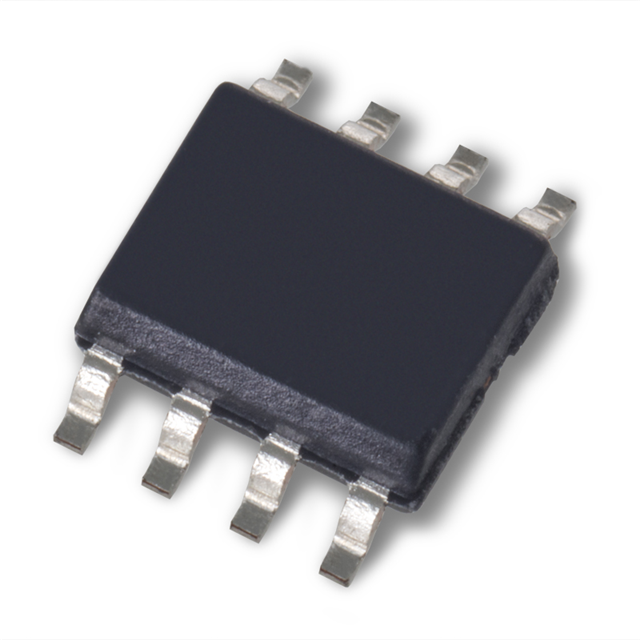

LS830 SOIC 8L
