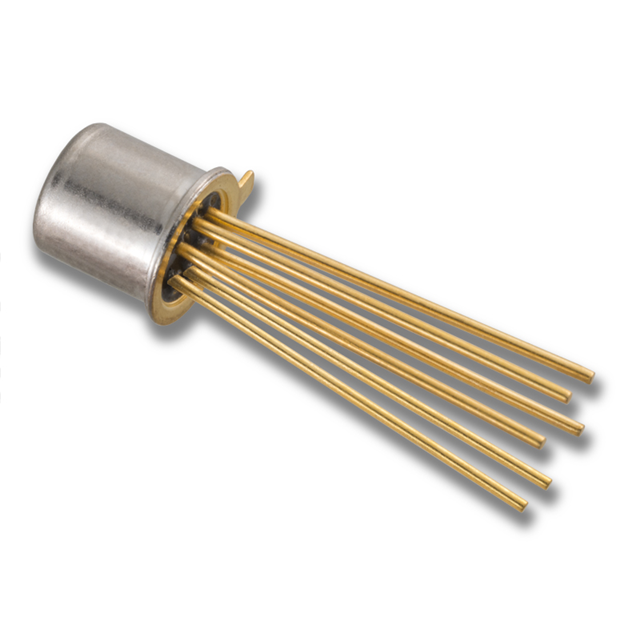

LSK589 TO-71 6L ROHS
JFET 2N-CH 25V 50MA TO71Manufacturer: Linear Integrated Systems, Inc.
Categories: JFETs
Quality Control: Learn More
JFET 2 N-Channel (Dual) 25 V 50 mA 500 mW Through Hole TO-71
Additional Information
Series: LSK589RoHS Status: ROHS3 CompliantManufacturer Lead Time: 1 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-71-6 Metal Can |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| FET Type | 2 N-Channel (Dual) |
| Input Capacitance (Ciss) (Max) @ Vds | 5pF @ 10V |
| Voltage - Breakdown (V(BR)GSS) | 25 V |
| Current Drain (Id) - Max | 50 mA |
| Supplier Device Package | TO-71 |
| Drain to Source Voltage (Vdss) | 25 V |
| Power - Max | 500 mW |
| Voltage - Cutoff (VGS off) @ Id | 1.5 V @ 1 nA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 7 mA @ 10 V |
Request a Quote
Clients Also Buy

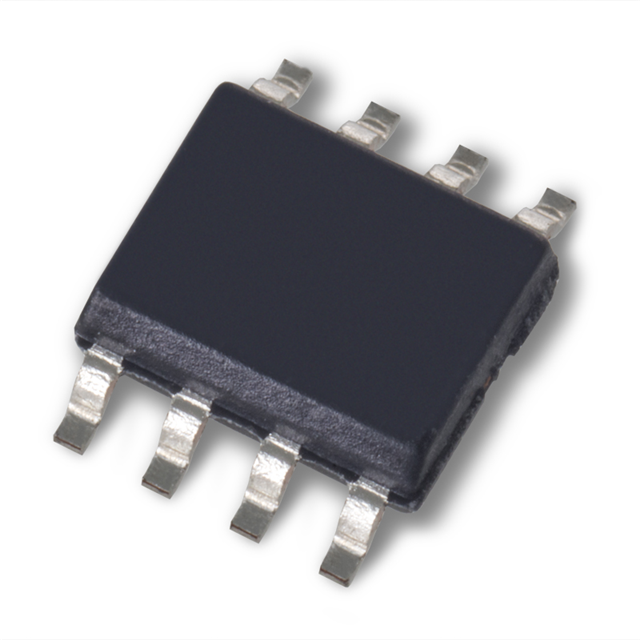

LSK589 SOIC 8L ROHS
