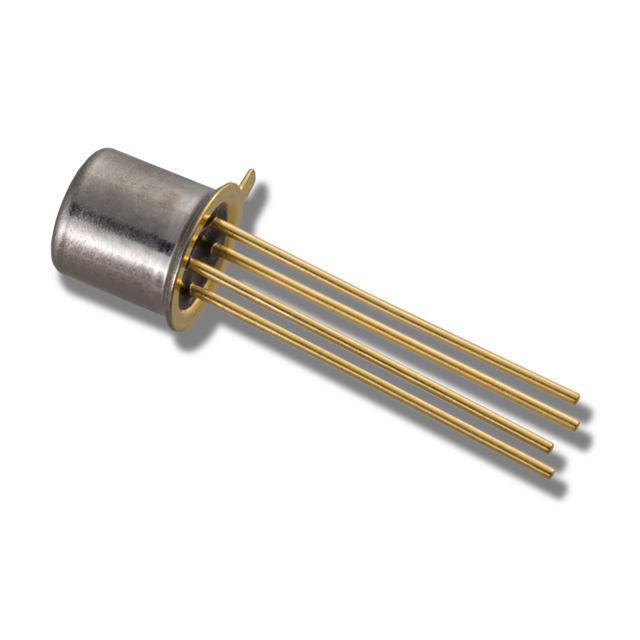

LS846 TO-72 4L ROHS
JFET N-CH 60V TO72-4Manufacturer: Linear Integrated Systems, Inc.
Categories: JFETs
Quality Control: Learn More
Linear Integrated Systems, Inc. LS846-TO-72-4-ROHS is an N-Channel JFET designed for high-performance applications. Featuring a breakdown voltage of 60V (V(BR)GSS) and a continuous drain current (Idss) of 1.5 mA at 15V Vds, this component is suitable for sensitive amplification and switching circuits. The LS846 series JFET operates with a maximum power dissipation of 300 mW and an input capacitance (Ciss) of 8pF at 15V Vds. Its TO-72-4 (TO-206AF) metal can package facilitates through-hole mounting and ensures reliable operation across a wide temperature range of -55°C to 150°C. This device finds application in areas such as low-noise amplifiers, oscillators, and analog switches within test and measurement equipment, audio processing, and RF circuits.
Additional Information
Series: LS846RoHS Status: ROHS3 CompliantManufacturer Lead Time: 1 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 8pF @ 15V |
| Voltage - Breakdown (V(BR)GSS) | 60 V |
| Supplier Device Package | TO-72-4 |
| Power - Max | 300 mW |
| Voltage - Cutoff (VGS off) @ Id | 1 V @ 1 nA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 1.5 mA @ 15 V |
