LS841 TO-71 6L ROHS
JFET 2N-CH 60V TO71Manufacturer: Linear Integrated Systems, Inc.
Categories: JFETs
Quality Control: Learn More

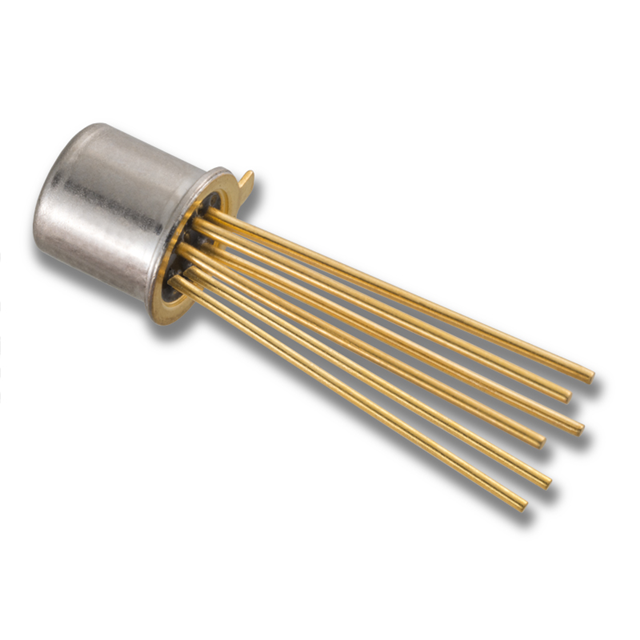

The Linear Integrated Systems, Inc. LS841-TO-71-6L-ROHS is a dual, 2 N-channel JFET housed in a TO-71 metal can package. This component offers a breakdown voltage (V(BR)GSS) of 60 V and a maximum power dissipation of 400 mW. With a typical drain current (Idss) of 500 µA at 20 V (Vgs=0), it is suitable for applications requiring low noise and high input impedance. The input capacitance (Ciss) is a maximum of 10 pF at 20 V. This through-hole mounted JFET operates within a temperature range of -55°C to 150°C. It finds use in precision analog circuits, amplification stages, and switching applications across various industrial and consumer electronics sectors.
Additional Information
Series: LS841RoHS Status: ROHS3 CompliantManufacturer Lead Time: 1 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-71-6 Metal Can |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| FET Type | 2 N-Channel (Dual) |
| Input Capacitance (Ciss) (Max) @ Vds | 10pF @ 20V |
| Voltage - Breakdown (V(BR)GSS) | 60 V |
| Supplier Device Package | TO-71 |
| Power - Max | 400 mW |
| Voltage - Cutoff (VGS off) @ Id | 1 V @ 1 nA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 500 µA @ 20 V |
Request a Quote
Clients Also Buy

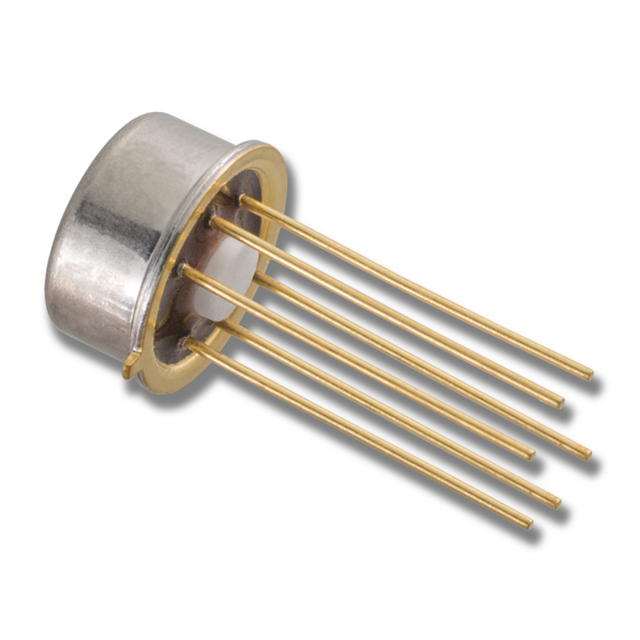

LS841 TO-78 6L ROHS
