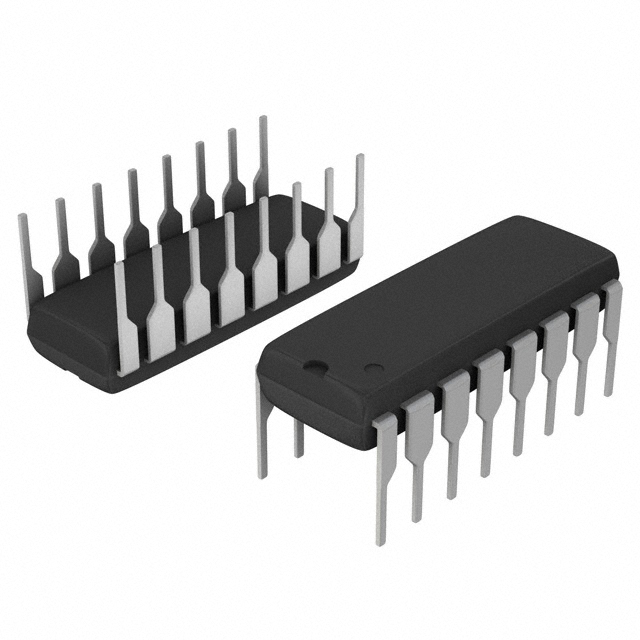

SD5000N PDIP 16L ROHS
MOSFET 4N-CH 20V 0.05A 16DIPManufacturer: Linear Integrated Systems, Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 50mA (Ta) 500mW (Ta) Through Hole 16-DIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 1 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Configuration | 4 N-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 500mW (Ta) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 50mA (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Rds On (Max) @ Id, Vgs | 70Ohm @ 1mA, 5V |
| Gate Charge (Qg) (Max) @ Vgs | - |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.5V @ 1µA |
| Supplier Device Package | 16-DIP |
Request a Quote
Clients Also Buy
SD5400CY SOIC 14L ROHS
MOSFET 4N-CH 20V 0.05A 14SOIC

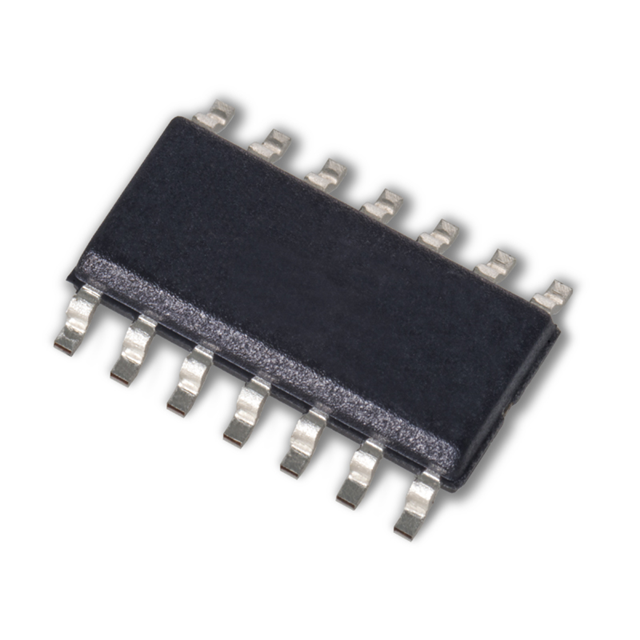

SD5401CY SOIC 14L ROHS
