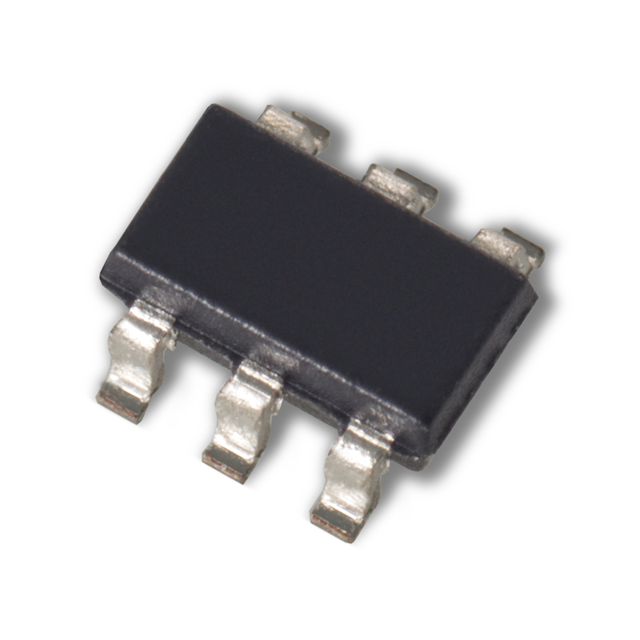

LS352 SOT-23 6L
TIGHTLY MATCHED, MONOLITHIC DUALManufacturer: Linear Integrated Systems, Inc.
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Linear Integrated Systems, Inc. presents the LS352-SOT-23-6L, a tightly matched, monolithic dual PNP bipolar transistor array. This component features two PNP transistors housed in a SOT-23-6 surface mount package. It offers a collector-emitter breakdown voltage of 60V and a maximum collector current of 10mA. The transition frequency reaches 200MHz, with a maximum power dissipation of 500mW. Key electrical characteristics include a minimum DC current gain (hFE) of 200 at 1mA collector current and 5V Vce, and a low collector cutoff current (ICBO) of 200pA. Saturation voltage (Vce) is a maximum of 500mV at 100µA base current and 1mA collector current. The device operates at temperatures up to 150°C (TJ) and is supplied in cut tape packaging. This transistor array is suitable for applications in precision analog circuits and instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Transistor Type | 2 PNP (Dual) |
| Operating Temperature | 150°C (TJ) |
| Power - Max | 500mW |
| Current - Collector (Ic) (Max) | 10mA |
| Voltage - Collector Emitter Breakdown (Max) | 60V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100µA, 1mA |
| Current - Collector Cutoff (Max) | 200pA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 1mA, 5V |
| Frequency - Transition | 200MHz |
| Supplier Device Package | SOT-23-6 |
Request a Quote
Clients Also Buy
IT121 SOIC 8L ROHS
TIGHTLY MATCHED, MONOLITHIC DUAL

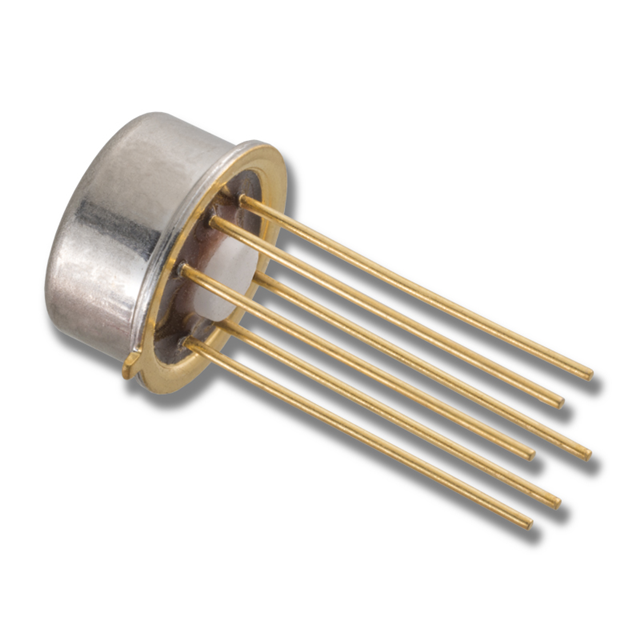

IT124 TO-78 6L ROHS
