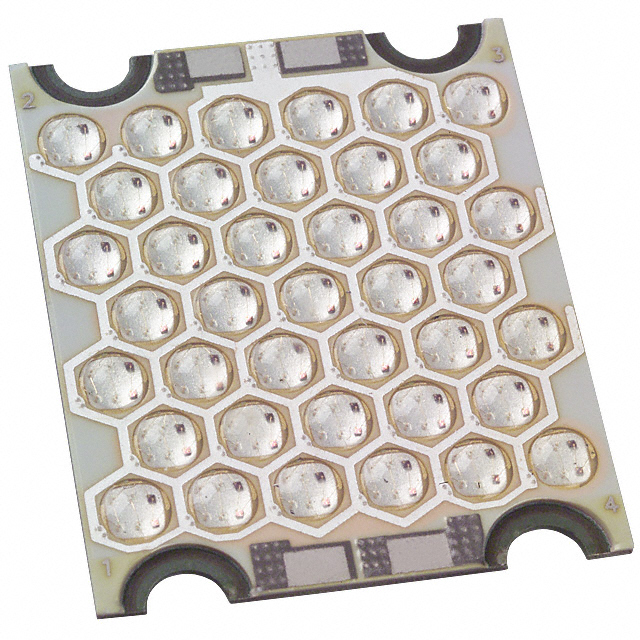

BL-33F0-0142
LED MOD BL-3000 RGB RECT SMDManufacturer: Lighting Science Group Corporation
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Lighting Science Group Corporation's BL-3000 series LED module, part number BL-33F0-0142, is a rectangular RGB LED module designed for high-performance lighting applications. This module features individual Red, Green, and Blue emitters, providing full-color mixing capabilities. Typical forward voltages are 4.8V for Red, 7.2V for Green, and 7.2V for Blue. At a test current of 1.17A and 25°C, it delivers a luminous flux of 114 lumens (Red), 145 lumens (Green), and 47 lumens (Blue). The module measures 31.75mm in length and 26.67mm in width, with a height of 2.29mm, and features a domed lens type. Applications include architectural lighting, stage lighting, and general illumination where precise color control and high brightness are required. Wavelengths for the emitters are 624nm (Red), 525nm (Green), and 470nm (Blue).
Additional Information
Series: BL-3000RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Color | Red, Green, Blue (RGB) |
| Wavelength | 624nm Red, 525nm Green, 470nm Blue |
| Size / Dimension | 31.75mm L x 26.67mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 4.8V Red, 7.2V Green, 7.2V Blue |
| Height | 2.29mm |
| Current - Test | 1.17A |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | - |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 114lm (Typ) Red, 145lm (Typ) Green, 47lm (Typ) Blue |
Request a Quote
Clients Also Buy
BL-31A0-0122
LED MOD BL-3000 RED RECT SMD

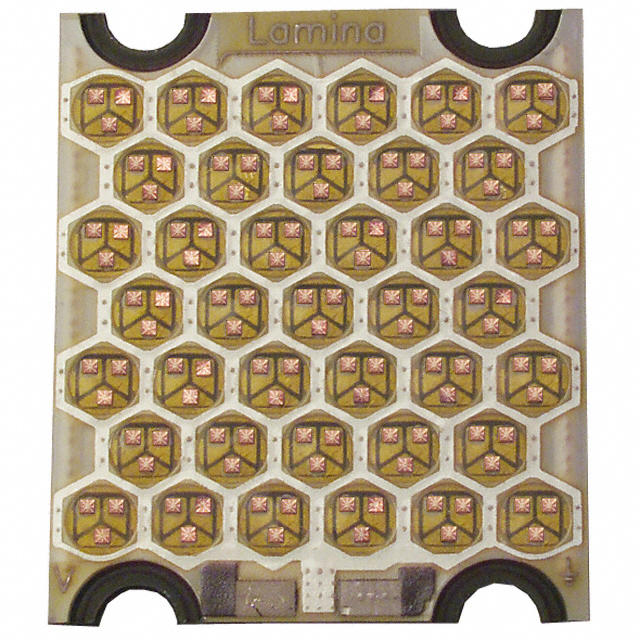

BL-31E0-0134
