LXSR 6-NPS KIT
3 PIECE KIT SENSOR CURRENT HALLManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More

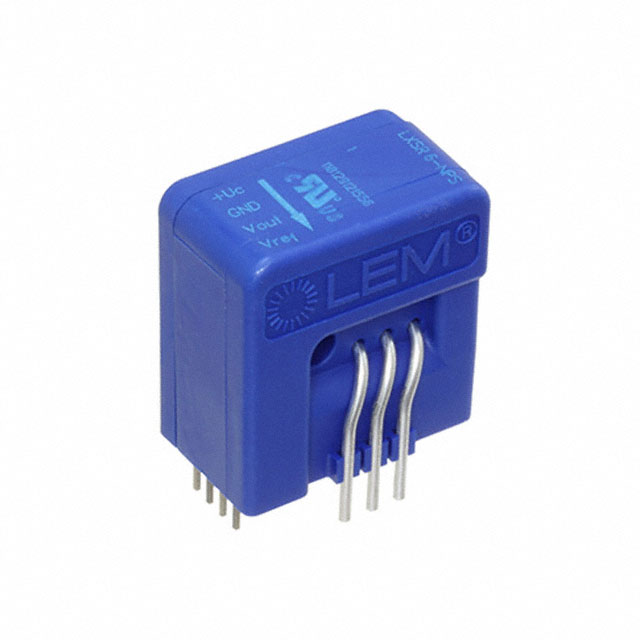

The LEM USA Inc. LXSR-6-NPS-KIT is a 3-piece kit featuring the LXSR series Hall effect current sensor. This closed-loop, bidirectional module is designed for accurate AC/DC current sensing up to 6A with ±1.25% accuracy and ±0.1% linearity. Operating with a 4.75V to 5.25V supply, it offers a sensitivity of 104.2mV/A and a wide bandwidth up to 300kHz, with a fast 400ns response time. The single-channel module utilizes through-hole mounting and outputs a ratiometric voltage. Applications for this component include industrial automation, power supplies, and electric vehicle charging systems.
Additional Information
Series: LXSRRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | 104.2mV/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | 300kHz |
| Accuracy | ±1.25% |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 400ns |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 23mA |
| Current - Sensing | 6A |
| Supplier Device Package | - |
| Number of Channels | 1 |
Request a Quote
