LXS 15-NPS

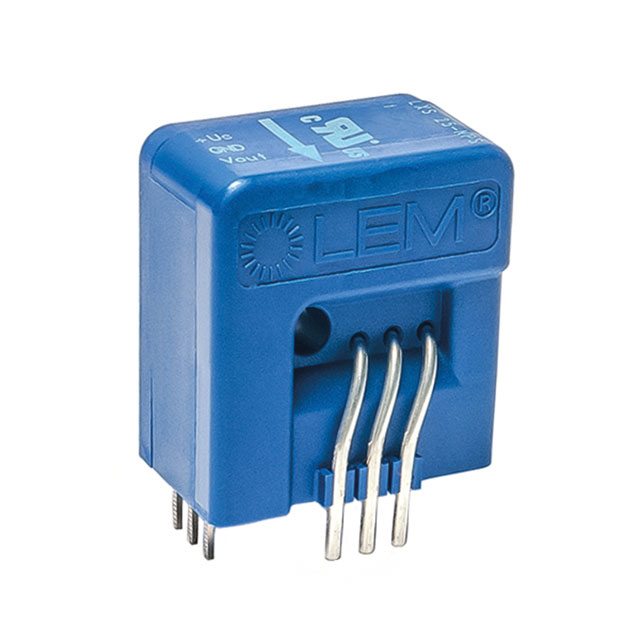

SENSOR CURRENT HALL 15A UNIPOLARManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
LEM USA Inc. LXS series LXS-15-NPS is a closed-loop Hall effect current sensor designed for precise measurement of AC and DC currents up to 15A. This unipolar sensor offers a 400ns response time and a broad operating frequency range of 300kHz, making it suitable for demanding applications. Key performance specifications include ±2.25% accuracy and ±0.1% linearity, ensuring reliable signal integrity. The LXS-15-NPS operates from a nominal 5V supply with a maximum supply current of 27.5mA and provides a ratiometric voltage output. Its through-hole mounting type and module package facilitate easy integration into PCB designs. This component finds application in industrial automation, power supplies, and motor control systems.
Additional Information
Series: LXSRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | 41.67mV/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | 300kHz |
| Accuracy | ±2.25% |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 400ns |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 27.5mA |
| Current - Sensing | 15A |
| Supplier Device Package | - |
| Number of Channels | 1 |
