LTS 25-NP/SP4
CURRENT TRANSDUCER 25AManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More

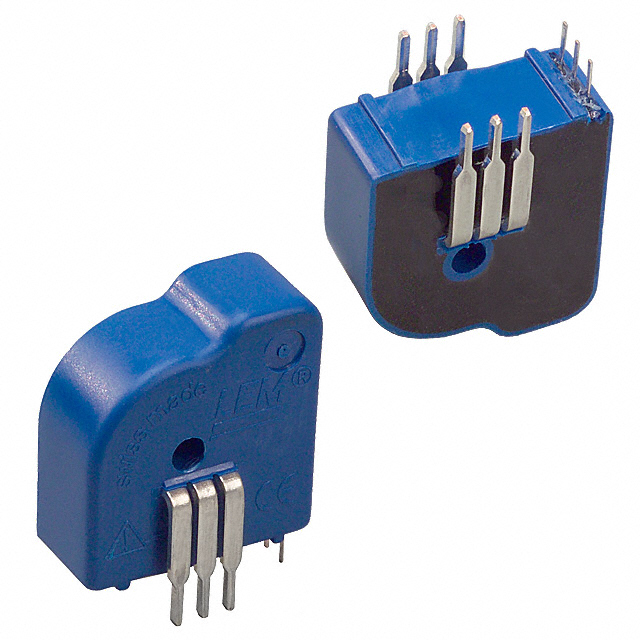

LEM USA Inc. LTS series current transducer, part number LTS-25-NP-SP4, is a closed-loop Hall effect sensor designed for precise bidirectional current measurement up to 25A. This single-pass-through module offers ratiometric voltage output with a typical sensitivity of 25mV/A and excellent linearity of ±0.1%. Its high accuracy of ±0.2% and wide frequency response from DC up to 200kHz make it suitable for demanding applications. The LTS-25-NP-SP4 operates from a 4.75V to 5.25V supply, consuming a maximum of 28mA. Featuring a fast 400ns response time, it is ideal for power electronics, industrial automation, and electric vehicle systems. The component is housed in a through-hole mount module for secure integration.
Additional Information
Series: LTSRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 25mV/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 200kHz |
| Accuracy | ±0.2% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 400ns |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 28mA (Typ) |
| Current - Sensing | 25A |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy

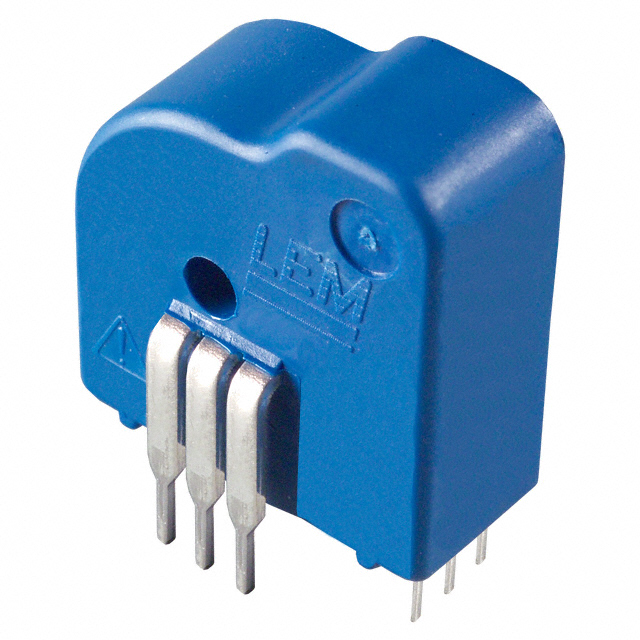

LTS 15-NP
