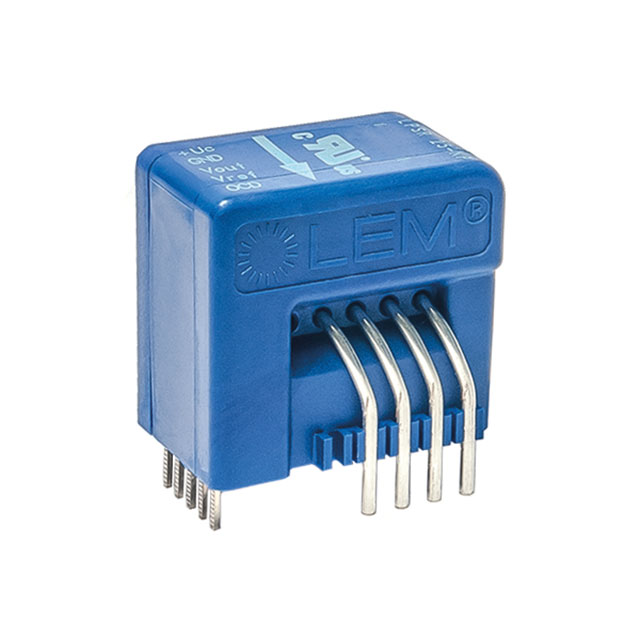

LPSR 6-NP
SENSOR CURRENT HALL 6A UNIPOLARManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More
LEM USA Inc. LPSR Series Hall Effect, Closed Loop current sensor, part number LPSR-6-NP. This bidirectional, unipolar sensor measures up to 6A AC/DC with a typical accuracy of ±1.25% and linearity of ±0.1%. Featuring a 300kHz bandwidth and a 400ns response time, it operates from a 4.75V to 5.25V supply with a maximum current draw of 23mA. The LPSR-6-NP provides a ratiometric voltage output with a sensitivity of 104.2mV/A. Engineered for robust performance, it is suitable for applications across industrial automation, power supplies, and electric vehicle systems. The module is designed for through-hole mounting and operates within a temperature range of -40°C to 105°C.
Additional Information
Series: LPSRRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | 104.2mV/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | 300kHz |
| Accuracy | ±1.25% |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 400ns |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 23mA |
| Current - Sensing | 6A |
| Supplier Device Package | - |
| Number of Channels | 1 |
