LKSR 6-NP KIT
3 PIECE KIT SENSOR CURRENT HALLManufacturer: LEM USA Inc.
Categories: Current Sensors
Quality Control: Learn More

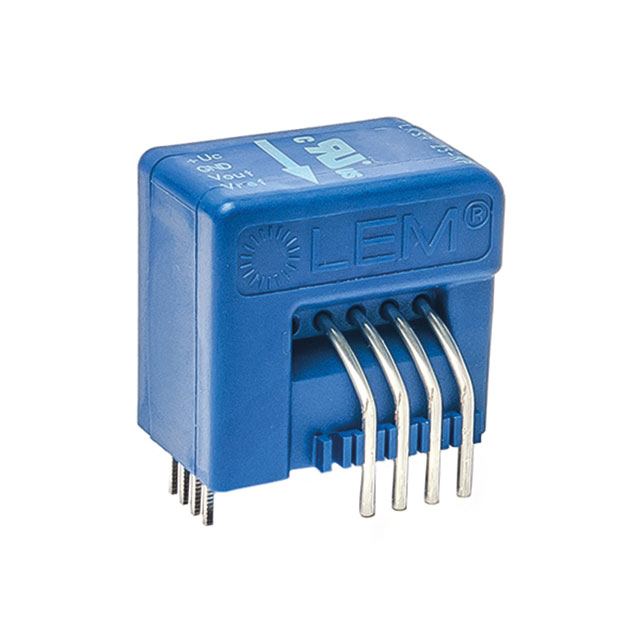

This LEM USA Inc. LKSR series current sensor kit, part number LKSR-6-NP-KIT, offers a 6A, single-channel, Hall effect, closed-loop, bidirectional measurement solution. Designed for precision, it features ±1.25% accuracy and ±0.1% linearity. The module operates with a 4.75V to 5.25V supply voltage and draws a maximum of 23mA. Its 300kHz frequency response and 400ns response time enable efficient AC/DC current sensing across a -40°C to 105°C operating temperature range. The ratiometric voltage output provides a sensitivity of 104.2mV/A. This through-hole mounted module is suitable for applications in industrial automation, power supplies, and electric vehicle charging systems.
Additional Information
Series: LKSRRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | 104.2mV/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | 300kHz |
| Accuracy | ±1.25% |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 400ns |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 23mA |
| Current - Sensing | 6A |
| Supplier Device Package | - |
| Number of Channels | 1 |
